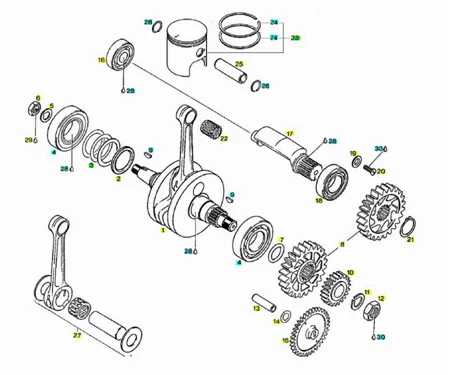

Moteur : 1 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/232/AF1_Futura_125_1990-1992_1.PNG)
1 |
AP0293846 - *0293846 More informationQuantity required : 1 |
||||||
|
3 |
AP0944583 - CALE VILO 30,4/40,5/0,1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/1/1/img/44611.jpg)
3 |
AP0944586 - CALE VILO 30,4/40,5/0,2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/1/7/img/44617.jpg)
5 |
AP0945754 - RONDELLE FENDUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/3/8/img/44438.jpg)
6 |
NUT - FOR CRANKSHAFT (12X1) "PIAGGIO GENUINE PART" APRILIA 125 AF1, PEGASO, RS 1998>1998 -AP0642051- More informationQuantity required : 1 |
||||||
|
7 |
AP0430460 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/7/8/img/43578.jpg)
8 |
BALANCE SHAFT GEAR (27 TEETH) "PIAGGIO GENUINE PART" APRILIA 125 RS, CLASSIC, PEGASO, AF1, RX, SX -AP0234431- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/8/9/img/43789.jpg)
9 |
AP0246055 - CLAVETTE More informationQuantity required : 2 |
||||||
|
10 |
AP0293926 - CLOCHE EMBRAYAGE CPLT More informationQuantity required : 1 |
||||||
|
11 |
AP0945756 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
AP0242570 - ECROU More informationQuantity required : 1 |
||||||
|
14 |
AP0827590 - RACLEUR More informationQuantity required : 1 |
||||||
|
15 |
AP0234405 - PIGNON POMPE A HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/2/6/img/43526.jpg)
16 |
BEARING 6302 "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, LEONARDO, PEGASO, RS, RX, SX, MX -AP0232291- More informationQuantity required : 1 |
||||||
|
17 |
AP0237948 - C/ARBRE More informationQuantity required : 1 |
||||||
|
19 |
AP0227280 - RACLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/9/1/img/44591.jpg)
20 |
AP0940315 - VIS More informationQuantity required : 1 |
||||||
|
21 |
AP0945810 - BAGUE SECURITE 25X1,2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/7/8/img/44578.jpg)
22 |
PISTON CAGE (15X19X20) "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, MX, TUONO, CLASSIC, PEGASO -AP0932028- More informationQuantity required : 1 |
||||||
|
23 |
AP0294753 - PISTONE CPL.54,00 MM More informationQuantity required : 1 |
||||||
|
23 |
AP0294744 - PISTONE CPL. 53,98 More informationQuantity required : 1 |
||||||
|
23 |
AP0294745 - PISTONE CPL. 53,99 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/8/0/img/43380.jpg)
24 |
PISTON RING- "PIAGGIO GENUINE PART" APRILIA 125 RS, SX, RX 1995>2010, MX 2004>2006, PEGASO 1991>1994, CLASSIC 1995>1999, AF1 1990>1992, 125 TUONO 2003>2004 -AP0215672- More informationQuantity required : 2 |
||||||
|
25 |
AP0216139 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/1/2/img/44612.jpg)
26 |
STOP RING FOR PISTON "PIAGGIO GENUINE PART" APRILIA 125 RS, CLASSIC, PEGASO, AF1, RX, SX -AP0945635- More informationQuantity required : 2 |
||||||
|
27 |
AP0295379 - BIELLA CPL. More informationQuantity required : 1 |
||||||
|
28 |
AP0297434 - LOCTITE ANTI SEIZE More informationQuantity required : 1 |
||||||
|
29 |
AP0899788 - LOCTITE VERTE More informationQuantity required : 1 |
||||||
|
30 |
AP0899785 - LOCTITE VIOLET More informationQuantity required : 1 |
