Vehicle Exploded View - APRILIA AF1 FUTURA 125 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

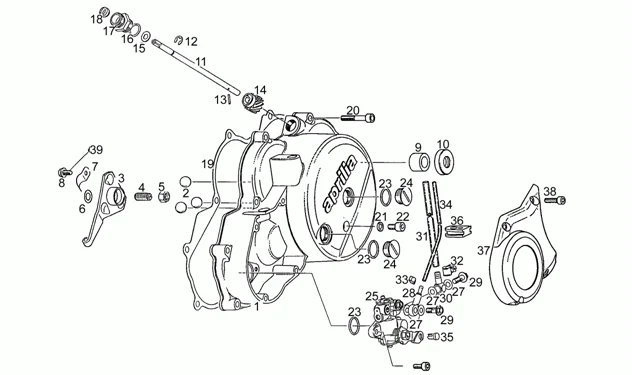

Moteur : 6 HUILE MIX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/232/AF1_Futura_125_1990-1992_6.PNG)
2 |
AP0232150 - BILLE More informationQuantity required : 3 |
||||||
|
3 |
AP0259180 - BRAS POUSSEE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/3/9/img/43739.jpg)
4 |
SCREW - M8X16 "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, TUONO, MX -AP0241793- More informationQuantity required : 1 |
||||||
|
5 |
AP0942674 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
AP0227945 - RACLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/6/8/3/img/43683.jpg)
7 |
AP0239907 - RESSORT A LAMES More informationQuantity required : 1 |
||||||
|
8 |
AP0841680 - VIS TE SPECIALE More informationQuantity required : 1 |
||||||
|
10 |
AP0250450 - JOINT SPI More informationQuantity required : 1 |
||||||
|
12 |
AP0945710 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
13 |
AP0932740 - GOUPILLE More informationQuantity required : 1 |
||||||
|
14 |
AP0634030 - PIGNON PPE EAU/HUILE More informationQuantity required : 1 |
||||||
|
15 |
AP0244211 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
AP0430600 - JOINT TORIQUE 12-1,5 More informationQuantity required : 1 |
||||||
|
17 |
AP0241070 - RACCORD More informationQuantity required : 1 |
||||||
|
18 |
AP0930500 - JOINT SPI More informationQuantity required : 1 |
||||||
|
19 |
AP0250200 - JOINT EMBRAYAGE More informationQuantity required : 1 |
||||||
|
20 |
AP0241811 - VIS More informationQuantity required : 11 |
||||||
|
22 |
AP0841331 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/0/5/img/43505.jpg)
23 |
AP0230400 - JOINT TORIQUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/4/0/img/43740.jpg)
24 |
AP0241800 - BOUCHON More informationQuantity required : 2 |
||||||
|
25 |
AP0294730 - POMPE A HUILE COMPLETE More informationQuantity required : 1 |
||||||
|
31 |
OIL PUMP HOSE "PIAGGIO GENUINE PARTS" APRILIA MOTO 125 CC -AP0256037- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/4/1/img/44541.jpg)
33 |
AP0853840 - COLLIER More informationQuantity required : 1 |
||||||
|
36 |
AP0260030 - CAOUTCHOUC CACHE-FIL More informationQuantity required : 1 |
||||||
|
37 |
AP0210930 - CARTER POMPE GRIS More informationQuantity required : 1 |
||||||
|
38 |
AP0441341 - VIS More informationQuantity required : 3 |
||||||
|
39 |
AP0899785 - LOCTITE VIOLET More informationQuantity required : 1 |
