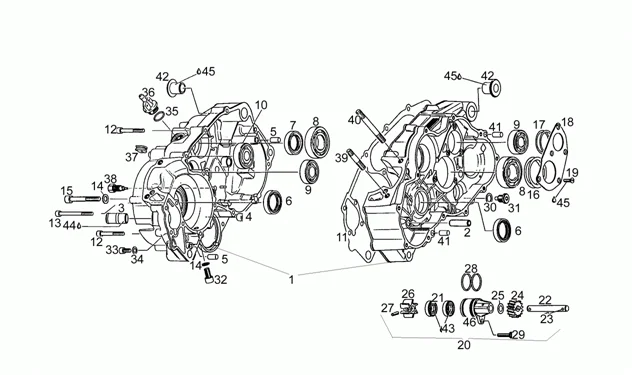

Vehicle Exploded View - APRILIA AF1 FUTURA 125 1990-1992

	P2R reference
	Maker reference	AP0295114

CARTER MOTEUR X KIT

	P2R reference
	Maker reference	AP0237900

AXE

	P2R reference	43463
	Maker reference	AP0224260

AP0224260 - TUYAU

	P2R reference	38259
	Maker reference	2R000066

2R000066 - CAGE A ROULEAUX

	P2R reference
	Maker reference	AP0229290

Goupille

	P2R reference	43507
	Maker reference	AP0230425

SEAL RING GASKET- FOR CRANSHAFT (28X38X7) "PIAGGIO GENUINE PART" APRILIA 125 RS, SX, RX, AF1, CLASSIC, PEGASO -AP0230425

	P2R reference	44574
	Maker reference	AP0930675

GASKET RING- GEARBOX (25X38X7) "PIAGGIO GENUINE PART" APRILIA 125 RS, MX, CLASSIC, PEGASO -AP0930675

	P2R reference	43541
	Maker reference	AP0232765

AP0232765 - ROULEMENT

	P2R reference	44579
	Maker reference	AP0932032

AP0932032 - ROULEMENT

	P2R reference	43526
	Maker reference	AP0232291

BEARING 6302 "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, LEONARDO, PEGASO, RS, RX, SX, MX -AP0232291-

	P2R reference	43830
	Maker reference	AP0250417

AP0250417 - JOINT CARTER CENTRAL

	P2R reference	43744
	Maker reference	AP0241821

AP0241821 - VIS

	P2R reference	43719
	Maker reference	AP0241261

AP0241261 - VIS

	P2R reference	44622
	Maker reference	AP0950141

AP0950141 - BAGUE D'ETANCHEITE

	P2R reference
	Maker reference	AP0841561

VIS CREUSE8X45

	P2R reference	163396
	Maker reference	AP0427421

AP0427421 - RONDELLE 42X52X0,3

	P2R reference	163397
	Maker reference	AP0427422

AP0427422 - RONDELLE 42X52X0,1

	P2R reference	163398
	Maker reference	AP0227520

AP0227520 - RONDELLE

	P2R reference	163399
	Maker reference	AP0227521

AP0227521 - RONDELLE

	P2R reference	163400
	Maker reference	AP0227522

AP0227522 - ENTRETOISE ARBR.II MM 0

	P2R reference
	Maker reference	AP0227260

PLATEAU

	P2R reference	44591
	Maker reference	AP0940315

AP0940315 - VIS

	P2R reference	44159
	Maker reference	AP0293415

AP0293415 - POMPE A EAU COMPLETE

	P2R reference	43500
	Maker reference	AP0230195

SEAL RING GASKET- FOR WATER PUMP (10X26X7) "PIAGGIO GENUINE PART" APRILIA 125 SX, RX, MX, CLASSIC, AF1, LEONARDO, SCARABEO, 650 PEGASO -AP0230195

	P2R reference	43633
	Maker reference	AP0237910

WATER PUMP AXLE "PIAGGIO GENUINE PART" APRILIA 125 RS 1996>1998, AF1 1990>1992, PEGASO 1991>1994 -AP0237910-

	P2R reference	38269
	Maker reference	2R000229

2R000229 - GOUPILLE

	P2R reference
	Maker reference	AP0234410

Pignon pompe a eau

	P2R reference	44502
	Maker reference	AP0827590

AP0827590 - RACLEUR

	P2R reference	43438
	Maker reference	AP0222195

IGNITION ROTOR "PIAGGIO GENUINE PART" 125 RS, SX, RX, MX, PEGASO, CLASSIC, AF1 -AP0222195

	P2R reference	43488
	Maker reference	AP0229280

AP0229280 - GOUPILLE

	P2R reference	44271
	Maker reference	AP0430060

O'RING GASKET FOR WATER PUMP "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, TUONO, RX, SX -AP0430060-

	P2R reference	163697
	Maker reference	AP0241270

AP0241270 - VIS BRIDE

	P2R reference	43839
	Maker reference	AP0250641

AP0250641 - BAGUE D'ETANCHEITE

	P2R reference	151175
	Maker reference	2R000498

OIL DRAIN CAP MAGNETIC "PIAGGIO GENUINE PART" COMMON TO THE APRILIA RANGE -2R000498-

	P2R reference	142571
	Maker reference	2R000308

2R000308 - VIS

	P2R reference	44526
	Maker reference	AP0841331

AP0841331 - VIS

	P2R reference
	Maker reference	AP0227500

RONDELLE 8X24

	P2R reference	43505
	Maker reference	AP0230400

AP0230400 - JOINT TORIQUE

	P2R reference	43748
	Maker reference	AP0241925

AP0241925 - BOUCHON IMMISS. =0241925

	P2R reference
	Maker reference	AP0860372

CAOUTCHOUC

	P2R reference	43747
	Maker reference	AP0241854

AP0241854 - VIS CONTACT

	P2R reference	43724
	Maker reference	AP0241381

AP0241381 - VIS SANS T?TE

	P2R reference	44598
	Maker reference	AP0940786

AP0940786 - VIS SANS T?TE

	P2R reference
	Maker reference	AP0229290

Goupille

	P2R reference	43792
	Maker reference	AP0247555

AP0247555 - DOUILLE

	P2R reference	44553
	Maker reference	AP0897161

AP0897161 - MOLYKOTE

	P2R reference	44558
	Maker reference	AP0899788

AP0899788 - LOCTITE VERTE

	P2R reference	44557
	Maker reference	AP0899785

AP0899785 - LOCTITE VIOLET

	P2R reference
	Maker reference	AP0222180

CORPS DE POMPE
