Eclatés de véhicule - MOTO GUZZI V11 1100 V 11 Le Mans-Sport Naked 1100 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

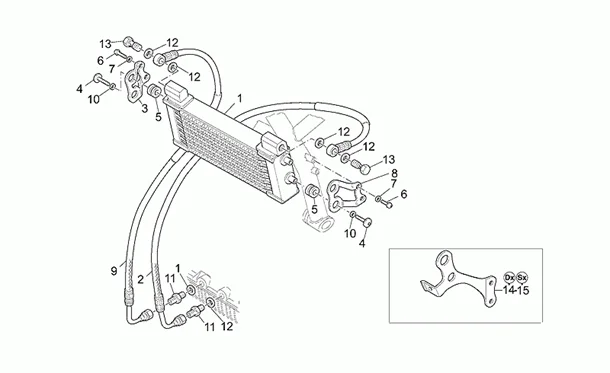

Chassis : 33.46 RADIATEUR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1237/V_11_Le_Mans-Sport_Naked_1100_2001-2002_33.46.png)
1 |
GU01162030 - RADIATORE OLIO CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU01162330 - TUBO RITORNO OLIO Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU01164231 - STAFFA DX Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
VIS BTR SPECIALE TETE BOMBEE (6X16) ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU98370616- Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
GU91551132 - CAOUTCHOUC Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
6 |
VIS BTR TETE BOMBEE (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -672380- Plus d'informationsQuantité requise : 4 |
||||||
|
7 |
GU95000206 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
GU01164431 - STAFFA SX Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/4/9/0/img/101490.jpg)
9 |
FLEXIBLE RADIATEUR HUILE COTE DROIT ORIGINE PIAGGIO MOTO-GUZZI V11 1999-2002 -GU01161630- Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
GU95100116 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
|
11 |
GU01161330 - RIDUZIONE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
12 |
JOINT HUILE ORIGINE PIAGGIO MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD -GU01154230- Plus d'informationsQuantité requise : 6 |
||||||
|
13 |
GU01161730 - VITE FORATA * Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
SUPPORT RADIATEUR DROIT ORIGINE PIAGGIO MOTO-GUZZI 1100 V11 -GU01164261- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/5/0/3/img/101503.jpg)
15 |
SUPPORT RADIATEUR GAUCHE ORIGINE PIAGGIO MOTO-GUZZI 1100 V11 -GU01164461- Plus d'informationsQuantité requise : 1 |
