Eclatés de véhicule - APRILIA SPORT CITY STREET 300 4T 4V E3 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

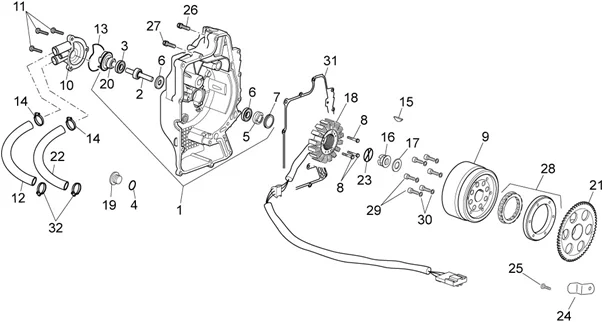

Tavole : 52 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/285/Sport_City_Street_300_4T_4V_E3_2012_52.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/4/img/70714.jpg)
1 |
CARTER POMPE A EAU COMPLET ORIGINE PIAGGIO 250 MP3, X8, X9, X-EVO,250-300 X7, BEVERLY, VESPA GTS/APRILIA 250-300 ATLANTIC, SPORT-CITY, SCARABEO, SR-MAX/GILERA 250-300 NEXUS -8798315- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/7/img/69327.jpg)
2 |
ARBRE DE POMPE A EAU AVEC ROULEMENTS ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -8447595- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/6/img/68876.jpg)
3 |
JOINT POMPE A EAU ORIGINE PIAGGIO 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
4 |
JOINT TORIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -1A009397- Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
JOINT TORIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -1A009397- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/0/img/69230.jpg)
5 |
ENTRAINEUR DE POMPE A EAU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -842389- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/9/img/68679.jpg)
6 |
ROULEMENT (28X8X9) AXE DE POMPE A EAU ORIGINE PIAGGIO 125-300 BEVERLY, VESPA GTS, 125 X9, X8, X10/APRILIA 125-250 SCARABEO, SPORT-CITY, ATLANTIC -82755R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/1/img/68801.jpg)
7 |
JOINT DE POMPE A EAU (20X30X5) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -82897R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/7/img/67347.jpg)
8 |
VIS BTR TETE BOMBEE (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -597564- Plus d'informationsQuantité requise : 1 |
||||||
9 |
873034 - ROTOR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/6/6/img/70666.jpg)
10 |
COUVERCLE POMPE A EAU (3 DURITES) ORIGINE PIAGGIO 125-250-300 MP3, X7, 125-250 X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC (COMPATIBLE AVEC 8482585) -877528 - Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
11 |
VIS CRUCIFORME (5X22) ORIGINE PIAGGIO COMMUN A LA GAMME -828662- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/8/6/img/70686.jpg)
12 |
DURITE/TUYAU POMPE A EAU CYLINDRE ORIGINE PIAGGIO 250-300 MP3, GTS, X7, X8, X9 -878626- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/7/1/img/66671.jpg)
13 |
JOINT TORIQUE DE POMPE A EAU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -485080- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
14 |
COLLIER DURITE (19.8MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001904- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
15 |
CLAVETTE ALLUMAGE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -000097- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/3/img/68853.jpg)
16 |
ECROU ROTOR ALLUMAGE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER 125-250-300 -82952R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/9/img/69229.JPG)
17 |
RONDELLE PLATE (16X30X2) ORIGINE PIAGGIO COMMUN A LA GAMME -842385- Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
58223R - VOLANT MAGNET. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/0/img/68810.jpg)
19 |
BOUCHON CONTROLE DE CALLAGE SUR CARTER POMPE A EAU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -8290405- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/6/img/69326.jpg)
20 |
TURBINE DE POMPE A EAU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -844730- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/6/img/68666.jpg)
21 |
COURONNE DE DEMARREUR ORIGINE PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, X7,125-250 X8, X9, X-EVO /GILERA 125-250-300-500 NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO -82737R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/1/img/70701.JPG)
22 |
DURITE REFROIDISSEMENT (ENTRE POMPE ET CALORSTAT) ORIGINE PIAGGIO 125-250-300 MAXISCOOTER -878940- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/1/img/69231.jpg)
23 |
RESSORT ENTRAINEMENT POMPE A EAU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTEUR 125-250-300 -842390- Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
848724 - PALQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/8/5/img/109085.jpg)
25 |
VIS CRUCIFORME (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003108- Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
VIS CRUCIFORME (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003108- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
26 |
VIS BRIDE TH (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -414838- Plus d'informationsQuantité requise : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/2/img/72732.jpg)
27 |
VIS BRIDE TH (6X112.5) ORIGINE PIAGGIO COMMUN A LA GAMME -B016807- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/5/3/img/149153.jpg)
28 |
ROUE LIBRE DE DEMARREUR (6 TROUS) ORIGINE PIAGGIO 300-350-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 400 X8,X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO -1A0093875- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/6/img/70656.jpg)
29 |
VIS BTR (6X24) ORIGINE PIAGGIO COMMUN A LA GAMME -877289- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/9/img/66579.JPG)
30 |
RONDELLE GROWER (6) ORIGINE PIAGGIO COMMUN A LA GAMME -479515- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/0/img/69150.jpg)
31 |
JOINT COUVERCLE ALLUMAGE ORIGINE PIAGGIO 125-250-300 MP3, X7, VESPA GTS, BEVERLY, CARNABY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-300 SR-MAX, SPORT-CITY MOTEUR INJECTION -840504- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/1/img/72881.jpg)
32 |
COLLIER DURITE REFROIDISSEMENT (30MM) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -CM001922- Plus d'informationsQuantité requise : 2 |
