Eclatés de véhicule - APRILIA SPORT CITY STREET 300 4T 4V E3 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

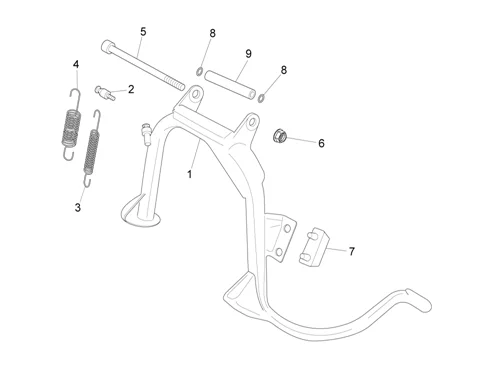

Tavole : 02 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/285/Sport_City_Street_300_4T_4V_E3_2012_02.PNG)
1 |
AP8145025 - CAVALLETTO CENTRALE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/3/img/66643.jpg)
2 |
PIVOT RESSORT DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -483785- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/6/img/67266.jpg)
3 |
RESSORT DE BEQUILLE CENTRALE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -582850- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/7/img/67267.jpg)
4 |
RESSORT DE BEQUILLE CENTRALE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 CC -582851- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8150438 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
6 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152301- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8144729 - TAMPONE DI APPOGGIO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
8 |
JOINT AXE DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -273754- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/1/img/67251.jpg)
9 |
ENTRETOISE DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -582298- Plus d'informationsQuantité requise : 1 |
