Eclatés de véhicule - APRILIA SPORT CITY STREET 300 4T 4V E3 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

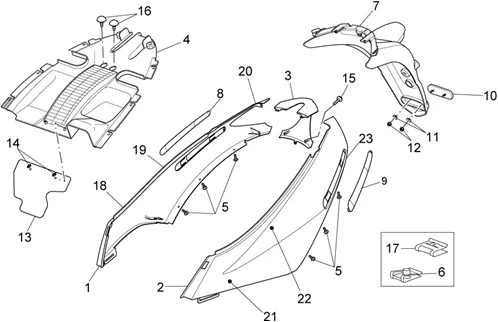

Tavole : 16 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/285/Sport_City_Street_300_4T_4V_E3_2012_16.PNG)
1 |
AP8184466 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8269429 - QUEUE, ROUGE D. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8184467 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8269430 - QUEUE, ROUGE G. Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8184276 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8179359 - CHIUSURA INFERIORE CODONE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
5 |
VIS BRIDE BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152298- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/9/6/img/69796.jpg)
7 |
BAVETTE PORTE PLAQUE ARRIERE ORIGINE APRILIA 125-200-250-300 SPORT CITY 2006>2012 -860300- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8178099 - PARACOLPI DX Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8178100 - PARACOLPI SX Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
10 |
CATADIOPTRE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO ET MAXISCOOTER APRILIA -AP8124718- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.JPG)
11 |
RONDELLE 4X16 ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -AP8150159- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
12 |
ECROU AUTOBLOQUANT/NYLSTOP (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150204- Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
AP8178885 - PROTEZIONE POSTERIORE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
14 |
RONDELLE ELASTIQUE (5) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -AP8150450- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/9/img/71869.jpg)
15 |
VIS PARKER (4,2X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150362- Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
AP8706409 - GOMMINO SEMISFERICO NERO Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
AP8201764 - CLIP POUR VIS TARAUD Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
B045166 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
B045151 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
B045153 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
B045156 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
B045152 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
B045167 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
B045154 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
B045157 - DECALCO Plus d'informationsQuantité requise : 1 |
