Eclatés de véhicule - APRILIA SPORT CITY STREET 300 4T 4V E3 2012

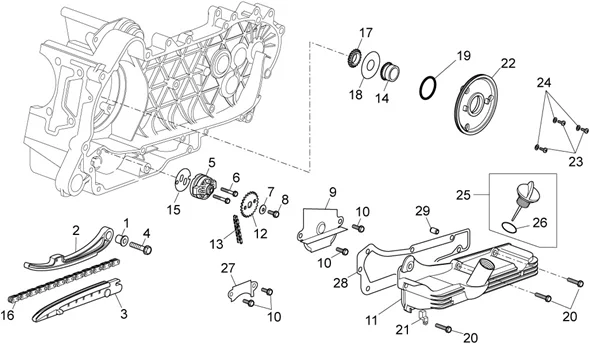

Tavole : 47 POMPE HUILE
47 POMPE HUILE
![]() 1 |
ENTRETOISE EN T (D6) ORIGINE PIAGGIO COMMUN A LA GAMME -485868- Plus d'informationsQuantité requise : 1 |
||||||
![]() 2 |
TIGE TENDEUR DE CHAINE DISTRIBUTION ORIGINE PIAGGIO 250-300 COMMUN A LA GAMME -840344 Plus d'informationsQuantité requise : 1 |
||||||
![]() 3 |
PATIN TENDEUR DE CHAINE DE DISTRIBUTION ORIGINE PIAGGIO 300 MP3, BEVERLY, GTS 2018> -847516- Plus d'informationsQuantité requise : 1 |
||||||
![]() 3 |
PATIN TENDEUR DE CHAINE DE DISTRIBUTION ORIGINE PIAGGIO 300 MP3, BEVERLY, GTS 2018> -847516- Plus d'informationsQuantité requise : 1 |
||||||
![]() 4 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME/KICK DERBI 50 SENDA -B016774 Plus d'informationsQuantité requise : 1 |
||||||
![]() 5 |
POMPE A HUILE ORIGINE PIAGGIO 125-250-300 MP3, BEVERLY, X7, VESPA GTS, 125-250 X8, X-EVO, X9, 125-300 YOURBAN, 125 FLY, LIBERTY, VESPA LX/GILERA NEXUS/APRILIA ATLANTIC, SCARABEO -82948R- Plus d'informationsQuantité requise : 1 |
||||||
![]() 6 |
829593 - BOULON Plus d'informationsQuantité requise : 2 |
||||||
![]() 7 |
RONDELLE RESSORT (6.4X20X2) ORIGINE PIAGGIO COMMUN A LA GAMME -436695 Plus d'informationsQuantité requise : 1 |
||||||
![]() 8 |
VIS BRIDE TH (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -B016426 Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
483767 - PANNEAU INFERIEURE Plus d'informationsQuantité requise : 1 |
||||||
![]() 10 |
VIS BRIDE TH (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -484123- Plus d'informationsQuantité requise : 4 |
||||||
![]() 11 |
CARTER HUILE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOT -846096 Plus d'informationsQuantité requise : 1 |
||||||
![]() 12 |
PIGNON POMPE A HUILE ORIGINE PIAGGIO 50-125-300 COMMUN A LA GAMME -287913 Plus d'informationsQuantité requise : 1 |
||||||
![]() 13 |
CHAINE DE POMPE A HUILE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -82649R Plus d'informationsQuantité requise : 1 |
||||||
![]() 14 |
PIGNON ENTRAINEMENT DE POMPE A HUILE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -82783R Plus d'informationsQuantité requise : 1 |
||||||
![]() 15 |
JOINT CARTER POMPE A HUILE ORIGINE PIAGGIO 125-250-300 COMMUN A LA GAMME -847929- Plus d'informationsQuantité requise : 1 |
||||||
![]() 16 |
CHAINE DE DISTRIBUTION ORIGINE PIAGGIO 250 MP3, X8, X7, X9, X-EVO, 300 MP3, X7/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO -82723R Plus d'informationsQuantité requise : 1 |
||||||
![]() 17 |
PIGNON DE CHAINE DE DISTRIBUTION ORIGINE PIAGGIO COMMUN A LA GAMME -82782R- Plus d'informationsQuantité requise : 1 |
||||||
![]() 18 |
RONDELLE ENTRE PIGNONS DE VILEBREQUIN ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -483918 Plus d'informationsQuantité requise : 1 |
||||||
![]() 19 |
JOINT TORIQUE DE PIGNON DE POMPE A HUILE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -825952- Plus d'informationsQuantité requise : 1 |
||||||
![]() 20 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -B016792- Plus d'informationsQuantité requise : 7 |
||||||
![]() 21 |
564629 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
![]() 22 |
COUVERCLE DE DISTRIBUTION (JOINT DE VILEBREQUIN INCLU) ORIGINE PIAGGIO 125-250-300 MP3, BEVERLY, VESPA GTS, X7, 125-250 X9, X8, X-EVO/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIQUE -847116 Plus d'informationsQuantité requise : 1 |
||||||
![]() 23 |
VIS CRUCIFORME (5X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150515 Plus d'informationsQuantité requise : 3 |
||||||
![]() 24 |
RONDELLE PLATE (D5) CUIVRE ORIGINE PIAGGIO COMMUN A LA GAMME -487937- Plus d'informationsQuantité requise : 3 |
||||||
![]() 25 |
JAUGE HUILE MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -843364- Plus d'informationsQuantité requise : 1 |
||||||
![]() 26 |
JOINT TORIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -1A009397- Plus d'informationsQuantité requise : 1 |
||||||
![]() 26 |
JOINT TORIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -1A009397- Plus d'informationsQuantité requise : 1 |
||||||
![]() 27 |
485047 - PANNEAU SUPERIEURE Plus d'informationsQuantité requise : 1 |
||||||
![]() 28 |
JOINT COUVERCLE CARTER HUILE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -846098- Plus d'informationsQuantité requise : 1 |
||||||
![]() 29 |
PION DE CENTRAGE (7,5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -277916- Plus d'informationsQuantité requise : 3 |
