Eclatés de véhicule - APRILIA SCARABEO 125 Mot Rotax 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

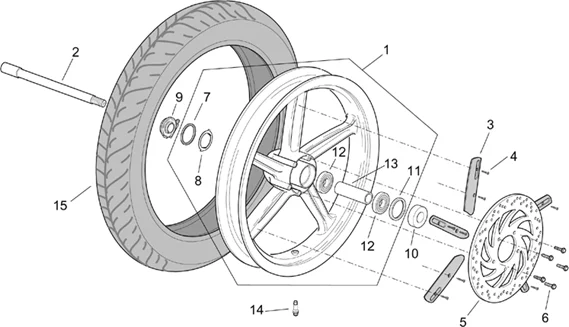

Chassis : 28.42 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/614/Scarabeo_125_Mot_Rotax_99-04_28.42.PNG)
1 |
Roue AV nue; |
||||||
|
1 |
AP8108971 - ROUE AV NUE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8125767 - AXE DE ROUE AV Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8139686 - CACHE RAY. ROUE AV Plus d'informationsQuantité requise : 5 |
||||||
|
4 |
AP8125810 - VIS Plus d'informationsQuantité requise : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/1/9/img/71319.jpg)
5 |
AP8113697 - DISQUE FREIN AVANT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
6 |
VIS BRIDE TH (8X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152288 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/4/img/47744.jpg)
7 |
BAGUE (40X50X4) D'ETANCHEITE ROUE AVANT ORIGINE PIAGGIO APRILIA 125-250 LEONARDO, 50-125 MOJITO, 650 PEGASO, 50 RALLY, 125-250 SCARABEO -AP8125743 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8120865 - ENTRA?NEMENT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/4/2/img/45242.jpg)
9 |
AP8102845 - RENVOI COMPTEUR KM Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8104426 - RENVOI COMPTEUR KM Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/6/9/img/57569.jpg)
10 |
ENTRETOISE DE ROUE ARRIERE ORIGINE PIAGGIO APRILIA 50 RX, SX, MX 2002>2004 -AP8225280 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8120621 - JOINT SPI Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP8125812 - ROULEMENT Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
AP8125811 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
14 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -AP8201546 Plus d'informationsQuantité requise : 1 |
