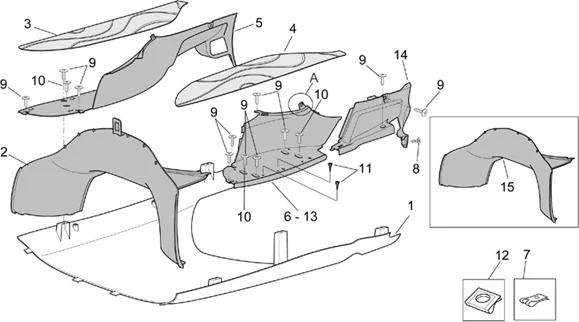

Chassis : 28.17 CARROSSERIE CENTRALE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/614/Scarabeo_125_Mot_Rotax_99-04_28.17.PNG)
1 |
Prot.inf.rep-p.vert; |
|||||||||
|
1 |
AP8168881 - SOTTOPIANALE Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8158181 - PROT. NF.REP-PIEDS RGE Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8158196 - PROT.INF.REP-P.VERT Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8178039 - SOTTOPIANALE BLU MAIN Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8158289 - PROT.INF.REP-PIEDS OR Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8168036 - PROT.INF.REP-P.VERT Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8168194 - PROT. NF.REP-PIEDS RGE Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8168205 - PROT.INF.REP-P.GRIS Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8168751 - PROT.INF.REP-P.VERT Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8178707 - SOTTOPIANALE GRIGIO DIAMOND Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8139274 - PROT.INF.REP-P.CHAMOIS Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
Prot.inf.rep-p.gris; |
|||||||||
|
1 |
Prot.inf.rep-p.rouge m; |
|||||||||
|
1 |
AP8148253 - PROT.INF.REP-P.VERT A. Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8148761 - PR.INF.REP.-P.P.N.A. Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8148775 - PR.INF.REP.-P.P.B.C. Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8149075 - PR.INF.REP.-P.P.I.G. Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8149327 - PROT.INF.REP-PIEDS B. Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8149329 - PROT. NF.REP-PIEDS RGE Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8149331 - PROT.INF.REP-P. NOIRE Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
AP8149333 - PROT.INF.REP-P. BLEU Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
AP8139275 - TUNNEL GRIS Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
AP8158921 - TUNNEL NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
3 |
Tapis D gris; |
|||||||||
|
3 |
AP8158923 - TAPIS D NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
4 |
Tapis G gris; |
|||||||||
|
4 |
AP8158924 - TAPIS G NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
AP8139583 - REP-PIED D GRIS Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
AP8158925 - REP-PIED D NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
Plancher repose-pieds noir, cpl. |
|||||||||
|
6 |
AP8139584 - REP-PIED G GRIS Plus d'informationsQuantité requise : 1 |
|||||||||
|
6 |
AP8158926 - REP-PIED G NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
6 |
Plancher repose-pieds noir, cpl. |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
7 |
ECROU TOLE ORIGINE PIAGGIO COMMUN A LA GAMME-AP8201763 Plus d'informationsQuantité requise : 18 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
8 |
VIS CRUCIFORME (2.9X12) TARAUD POUR PLASTIQUE INOX ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150421 Plus d'informationsQuantité requise : 2 |
|||||||||
|
9 |
AP8152345 - VIS Plus d'informationsQuantité requise : 22 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
10 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152302 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
10 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -2B014101 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
11 |
VIS CRUCIFORME (3.9X14) TARAUD CARENAGE INOX ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MOTO -AP8150413 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
12 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 4 |
|||||||||
|
13 |
AP8168880 - PIANALE SX Plus d'informationsQuantité requise : 1 |
|||||||||
|
14 |
AP8168947 - COPERCHIO TAPPO OLIO Plus d'informationsQuantité requise : 1 |
|||||||||
|
14 |
AP8178721 - COPERCHIO TAPPO OLIO GRIGIO Plus d'informationsQuantité requise : 1 |
|||||||||
|
15 |
AP8158921 - TUNNEL NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
15 |
Plancher repose-pieds noir, cpl. |
|||||||||
