Eclatés de véhicule - APRILIA SCARABEO 125 Mot Rotax 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

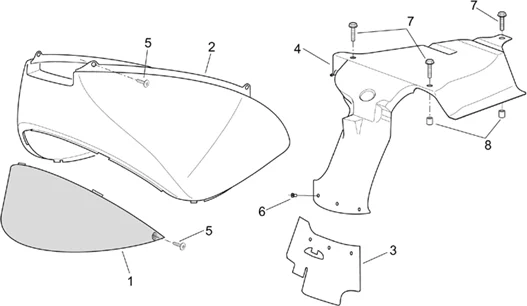

Chassis : 28.20 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/614/Scarabeo_125_Mot_Rotax_99-04_28.20.PNG)
1 |
AP8168878 - COPERCHIO ACCESSO CANDELA Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8178745 - SCUDO SOTTOSELLA V.SILVER M. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
Sous-selle chamois; |
||||||
|
2 |
AP8148225 - SOUS-SELLE GRIS SHARK Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8148242 - SOUS-SELLE ROUGE MIR? Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
Sous-selle vert agua; |
||||||
|
2 |
AP8148767 - DESS. SELLE P.N.APR. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8148781 - DESS. SELLE P.BL.CL. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8149081 - DESS. SELLE P.ICE GREEN Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8149551 - SOUS-SELLE GRIS MER. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8158186 - SOUS-SELLE ROUGE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8158205 - SOUS-SELLE VERT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8158252 - SOUS-SELLE GRIS Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8158269 - DESSOUS SELLE BLEU Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8158283 - DESSOUS SELLE OR Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8168041 - SOUS-SELLE VERT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8168106 - DESS. SELLE P.NOIR Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8168202 - SOUS-SELLE ROUGE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8168212 - SOUS-SELLE GRIS Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8168752 - SOUS-SELLE VERT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8168828 - DESSOUS SELLE BLEU Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8178708 - SCUDO SOTTOSELLA V.GRIGIO DIAM Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8117162 - PROT. PREDECOUPEE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8139283 - PROTECTION RESERVOIR Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8152345 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
6 |
AP8220471 - RIVET EN PLASTIQUE Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
7 |
VIS BRIDE TH (5X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152274 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
8 |
ECROU (M5) AVEC INSERT CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME DERBI, APRILIA ET MOTO-GUZZI -AP8120531 Plus d'informationsQuantité requise : 3 |
