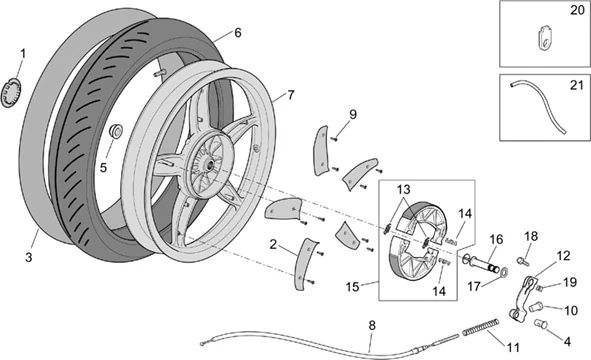

Chassis : 28.26 ROUE POSTERIEURE - F.T.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_28.26.PNG)
1 |
AP8220367 - BOUCHON ROUE ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8158097 - CACHE RAY. ROUE AR Plus d'informationsQuantité requise : 5 |
||||||
|
4 |
AP8221120 - AXE FIX. CABLE FREIN Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/3/img/146193.jpg)
5 |
ECROU BRIDE (16X1,25) ORIGINE PIAGGIO COMMUN A LA GAMME -1C002565 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8208733 - ROUE ARRIERE NUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/8/4/img/38284.jpg)
8 |
58628R5 - TRANSMISSION Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
Vis |
||||||
|
10 |
AP8101103 - REGLAGE LEVIER FREIN ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8121496 - RES. HELIC. COMPR Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
560796 - LEVIER FREIN AR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/0/img/69060.jpg)
12 |
LEVIER DE COMMANDE DE FREIN ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -833428 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
Ressort rappel mâchoires |
||||||
|
14 |
266724 - PLAQUE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/9/0/6/1/img/209061.jpg)
15 |
MACHOIRE DE FREIN SCOOT ORIGINE PIAGGIO 50 FLY 2T ET 4T 2005> AR, VESPA PRIMAVERA 2013>, VESPA SPRINT 2014>,TYPHOON 2010>/APRILIA 50 SR MOTARD 2010> (D.130) -56293R6 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
MACHOIRE DE FREIN SCOOT ORIGINE PIAGGIO 50 FLY 2T ET 4T 2005> AR, VESPA PRIMAVERA 2013>, VESPA SPRINT 2014>,TYPHOON 2010>/APRILIA 50 SR MOTARD 2010> (D.130) -56293R6 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/6/img/72646.jpg)
16 |
CAME DE FREIN ARRIERE ORIGINE PIAGGIO 50 ZIP, TYPHOON, NRG, LIBERTY, FLY, VESPA LX, VESPA-S/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD -B014502 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/4/img/66124.jpg)
17 |
JOINT CAME DE FREIN ARRIERE ORIGINE PIAGGIO 50 COMMUN A LA GAMME -273419 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/7/6/8/img/110768.jpg)
18 |
VIS BRIDE TH (6X27) ORIGINE PIAGGIO COMMUN A LA GAMME -B011784 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/1/img/68791.jpg)
19 |
ECROU CARRE (D6) ORIGINE PIAGGIO COMMUN A LA GAMME -828862 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/9/img/67059.jpg)
20 |
PLAQUETTE DE MAINTIEN DU CABLE DE FREIN SUR CARTER MOTEUR ORIGINE PIAGGIO FLY, LIBERTY, TYPHOON, NRG, ZIP, VESPA LX, SPRINT, S -564497 Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
890499 - TUYAU ESSENCE D.8X13 Plus d'informationsQuantité requise : 1 |
