Eclatés de véhicule - APRILIA SCARABEO 4T 100 E2 2001-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

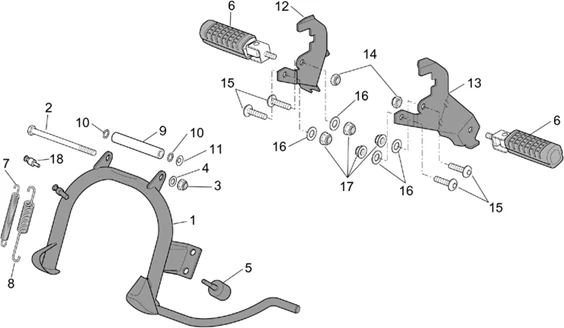

Chassis : 28.02 REPOSE-PIEDS BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_28.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/7/img/67417.jpg)
1 |
BEQUILLE CENTRALE ORIGINE PIAGGIO 50-125 LIBERTY 4T 1998>2012/APRILIA 50 SCARABEO 4T 2002>2012 -600183 Plus d'informationsQuantité requise : 1 |
||||||
2 |
AP8150438 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
3 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152301 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
4 |
RONDELLE PLATE (10.5X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152176 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/4/img/67224.jpg)
5 |
TAMPON/CAOUTCHOUC DE BEQUILLE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER -581560 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
Marchep. pass.-couple |
||||||
|
7 |
AP8221332 - RESS.RETOUR BEQ.INT. Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8221333 - RESS.RETOUR BEQ.EXT. Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8221331 - ENTRETOISE BEQUILLE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
Bague d'étanchéité |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
11 |
RONDELLE RESSORT (D10.5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP81216976 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP8146412 - SUPPORT R-P. D PASS. Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
AP8146535 - SUPPORT R-P. G PASS. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
14 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150436 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/5/img/50945.jpg)
15 |
VIS BTR TETE BOMBEE (8X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152058 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
16 |
RONDELLE PLATE (8.4X16X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150017 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
17 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152300 Plus d'informationsQuantité requise : 4 |
||||||
|
18 |
Vis accrochage ressort |
