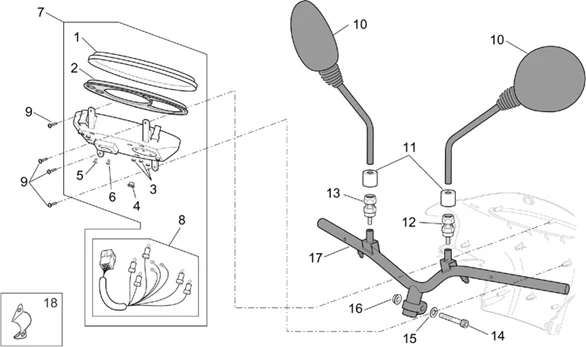

Chassis : 28.15 GUIDON-TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/621/Scarabeo_100_4T_E2_2001-2005_28.15.PNG)
1 |
AP8224031 - PROT. VITRE TABL.BORD Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8224419 - CACHE TEM.SANS VERRE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
Ecrou |
||||||
|
4 |
AP8224368 - BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Vis |
||||||
|
6 |
Vis |
||||||
|
7 |
AP8224353 - TABLEAU DE BORD Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8224418 - CABLAGE TBL.BORD+LAMPES Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
9 |
VIS BTR CARROSSERIE (3X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152334 Plus d'informationsQuantité requise : 4 |
||||||
|
10 |
AP8201984 - MIROIR RETROVISEUR Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/9/1/img/56891.jpg)
11 |
AP8220462 - SOUFFLET EN CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
AP8201987 - ECROU AVEC PINCE CTTE GCHE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
AP8201986 - ECROU AVEC PINCE CTTE DTE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
AP8150467 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
15 |
RONDELLE PLATE (10,5X21X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150020 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
16 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152301 Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
1B001604 - GUIDON AVEC P.I. Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
AP8118570 - CAVALIER Plus d'informationsQuantité requise : 1 |
