Eclatés de véhicule - APRILIA RS 125 2T NOABS 2006-2010 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

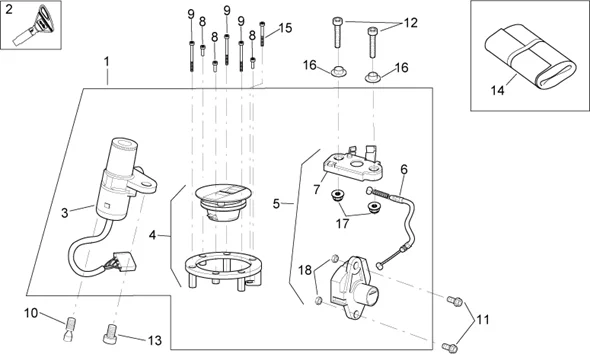

Chassis : 28.37 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/935/RS_125_2T_NOABS_2006-2010_(APAC_EMEA_NAFTA)_28.37.png)
1 |
893585 - KIT SERRURE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/5/img/97075.jpg)
2 |
EBAUCHE DE CLE ORIGINE PIAGGIO APRILIA 50-125 RS, SX, RX -AP8140710 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8104708 - CONTACTEUR A CLE APRILIA 125 RS 1999>2010, TUONO, 650 PEGASO, 1000 FALCO Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
896487 - BOUCHON RESERVOIR ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8104995 - SERRATURA SELLA Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8134949 - CAVO Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8102913 - PL.FIX.SELLE PASS. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/9/img/71819.jpg)
8 |
VIS BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150050 Plus d'informationsQuantité requise : 3 |
||||||
|
9 |
AP8150523 - VITE M5X60 Z.N. Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
10 |
VIS A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150349 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
11 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/1/img/71841.jpg)
12 |
VIS BTR (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150220 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
13 |
VIS BTR (8X16) ORIGINE PIAGGIO COMMUN A LA GAMME -319165 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
AP8102950 - TROUSSE A OUTILS Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
AP8150525 - VITE M5X45 Z.N. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/7/img/57007.jpg)
16 |
DOUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221129 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
17 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
18 |
ECROU AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150430 Plus d'informationsQuantité requise : 2 |
