Eclatés de véhicule - APRILIA RS 125 2T NOABS 2006-2010 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

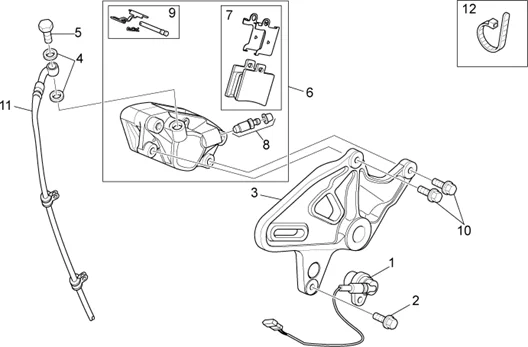

Chassis : 28.32 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/935/RS_125_2T_NOABS_2006-2010_(APAC_EMEA_NAFTA)_28.32.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/1/3/img/70813.jpg)
1 |
CAPTEUR DE COMPTEUR ORIGINE PIAGGIO MOTO-GUZZI 750 V7, NEVADA/APRILIA 125-250-300 SPORT-CITY, 250-300-400 SCARABEO, 125 RS -893570 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
2 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278 Plus d'informationsQuantité requise : 1 |
||||||
3 |
AP8154015 - PIASTRA ANCORAGGIO PINZA POST. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
4 |
RONDELLE (10X14X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113004 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
5 |
VIS TUYAU HUILE (10MM) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113003 Plus d'informationsQuantité requise : 3 |
||||||
|
6 |
AP8133845 - PINZA FRENO POST.ORO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/3/img/71693.jpg)
7 |
PLAQUETTES DE FREIN ARRIERE ORIGINE PIAGGIO APRILIA 125-400-500 SCARABEO LIGHT, 125-250 SPORT-CITY 2006>2008, 300 SPORT CITY LIGHT 2008>2012, 125 RS 2006>2010 (PAIRE) -AP8133946- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8133948 - KIT SPURGO POST. Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8133947 - PERNO E MOLLA PINZA POST Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
10 |
VIS BRIDE TH (8X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152287 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
AP8133884 - TUBO FRENO POST. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.jpg)
12 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 2,5X99MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120422 Plus d'informationsQuantité requise : 2 |
