Eclatés de véhicule - APRILIA RS 125 2T NOABS 2006-2010 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

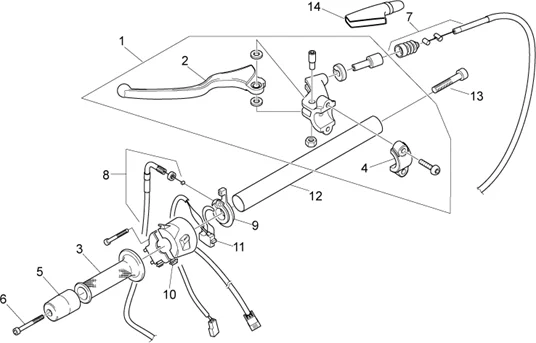

Chassis : 28.17 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/935/RS_125_2T_NOABS_2006-2010_(APAC_EMEA_NAFTA)_28.17.png)
1 |
AP8118716 - PORTALEVA FRIZIONE CPL * Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8118727 - LEVA FRIZIONE NUDA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/7/img/46297.jpg)
3 |
POIGNEES CAOUTCHOUC (PAIRE) ORIGINE APRILIA 50-125 RS 2010< -AP8118287 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8118728 - CAVALLOTTO LEVA FRIZIONE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8161057 - PESO ANTIVIBRANTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/9/img/71859.jpg)
6 |
VIS BTR (6X50) EMBOUT DE GUIDON ORIGINE PIAGGIO COMMUN A LA GAME MOTO APRILIA -AP8150324 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/9/0/img/46190.jpg)
7 |
CABLE/COMMANDE/TRANSMISSION EMBRAYAGE ORIGINE PIAGGIO APRILIA 125 RS 1995>2010, TUONO 2003>2004 -AP8114467 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/1/1/img/46111.jpg)
8 |
CABLE DE STARTER ORIGINE PIAGGIO APRILIA 125 RS 1996>2010 -AP8114331- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/0/0/img/46300.jpg)
9 |
LEVIER DE STARTER ORIGINE PIAGGIO APRILIA 125 RS, TUONO, AF1, CLASSIC, 650 PEGASO -AP8118308- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/0/img/71570.jpg)
10 |
COMMODO/COMMUTATEUR GAUCHE ORIGINE APRILIA 125 RS 1999<2005/650 PEGASO 2001<2004 -AP8124915 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8124152 - POUSSOIR CRONO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/4/0/5/img/46405.jpg)
12 |
DEMI-GUIDON ORIGINE PIAGGIO APRILIA 125 RS 2006>2010 -AP8118729 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
13 |
VIS BTR (10X60) ORIGINE PIAGGIO COMMUN ALA GAMME -AP8150049 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/4/img/46594.jpg)
14 |
CACHE-REGLAGE EMBRAYAGE ORIGINE APRILIA 50-125 2010< COMMUN A LA GAMME -AP8120271 Plus d'informationsQuantité requise : 1 |
