Eclatés de véhicule - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

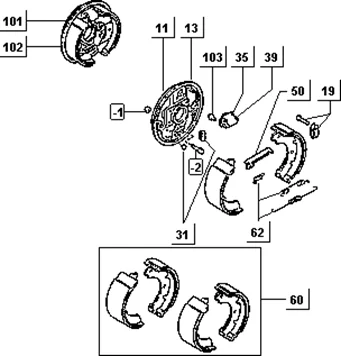

Transmisisons : T47-06 DISQUE PORTE MÂCHOIRES AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T47-06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/9/img/111089.jpg)
-1 |
ECROU MACHOIRE DE FREIN ARRIERE ORIGINE PIAGGIO PORTER 2020< -837138 Plus d'informationsQuantité requise : 4 |
||||||
-2 |
9004101608000 VIS Plus d'informationsQuantité requise : 4 |
||||||
|
11 |
ENSEMBLE/GROUPE FREIN ARRIERE DROIT ORIGINE PIAGGIO PORTER -4703087Z02000- Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
ENSEMBLE/GROUPE FREIN ARRIERE GAUCHE ORIGINE PIAGGIO PORTER -4704087Z02000- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/5/1/img/115851.jpg)
19 |
PLAQUETTE DE MAINTIENT MACHOIRES DE FREIN ORIGINE PIAGGIO PORTER -4744687Z01000 Plus d'informationsQuantité requise : 2 |
||||||
|
31 |
0226087Z01000 - KIT CAPUCHON Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/7/7/4/img/120774.jpg)
35 |
CYLINDRE DE ROUE ARRIERE ORIGINE PIAGGIO PORTER STANDARD 1995>2009 -4755087Z01000 Plus d'informationsQuantité requise : 1 |
||||||
|
39 |
CYLINDRE DE ROUE ARRIERE ORIGINE PIAGGIO PORTER STANDARD 1995>2009 -4755087Z01000 Plus d'informationsQuantité requise : 1 |
||||||
|
50 |
4761387Z01000 CHASSIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/7/8/8/img/122788.jpg)
60 |
KIT MACHOIRES DE FREIN ARRIERE (RATTRAPAGE MANUEL) ORIGINE PIAGGIO PORTER PIK-UP, VAN 2009< -850668 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/6/6/6/img/116666.jpg)
62 |
KIT RESSORT MACHOIRE DE FREIN ORIGINE PIAGGIO PORTER DIESEL -0287487Z01000 Plus d'informationsQuantité requise : 1 |
||||||
|
62 |
0251987Z01000 KIT RESSORT * Plus d'informationsQuantité requise : 1 |
||||||
|
101 |
ENSEMBLE/GROUPE FREIN ARRIERE DROIT ORIGINE PIAGGIO PORTER -4703087Z02000- Plus d'informationsQuantité requise : 1 |
||||||
|
102 |
ENSEMBLE/GROUPE FREIN ARRIERE GAUCHE ORIGINE PIAGGIO PORTER -4704087Z02000- Plus d'informationsQuantité requise : 1 |
||||||
|
103 |
4468187Z01000 VIS Plus d'informationsQuantité requise : 2 |
