Eclatés de véhicule - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

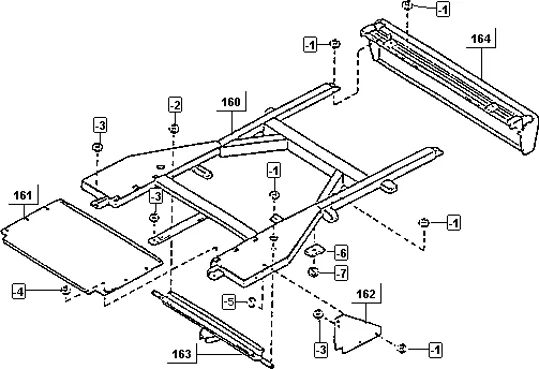

Châssis : T65-52/A PLANCHER AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T65-52_A.png)
1 |
9165141025000 BOULON Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
2 |
BOULON TH (6X14) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -CM287314 Plus d'informationsQuantité requise : 4 |
||||||
|
3 |
9165140820000 BOULON PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
BOULON TH (6X14) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -CM287314 Plus d'informationsQuantité requise : 6 |
||||||
|
5 |
9418041000000 ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
9004541144000 TAMPON Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
9352014014000 VIS Plus d'informationsQuantité requise : 2 |
||||||
|
160 |
5100587Z03000 - FRAME SUB-ASSY Plus d'informationsQuantité requise : 1 |
||||||
|
161 |
5842187Z04000 - COUVERCLE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
|
162 |
5121387Z01000 PLAQUE Plus d'informationsQuantité requise : 2 |
||||||
|
163 |
6510287Z04000 TRAVERSE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/9/8/0/img/121980.jpg)
164 |
PARE CHOC ARRIERE ORIGINE PIAGGIO PORTER 1992>2009 -B0040484 Plus d'informationsQuantité requise : 1 |
