Eclatés de véhicule - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

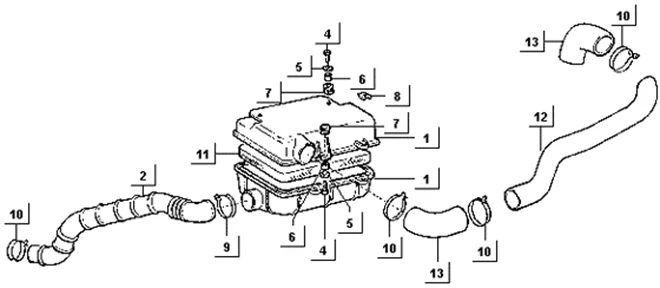

Moteur : T17-03 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T17-03.png)
1 |
BOITIER FILTRE A AIR COMPLET ORIGINE PIAGGIO PORTER DIESEL 1400 -263701- Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
569818 - TUYAU AIR - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
4 |
VIS TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -031092 Plus d'informationsQuantité requise : 3 |
||||||
|
5 |
016667 RONDELLE Plus d'informationsQuantité requise : 3 |
||||||
|
6 |
9004560215000 SILENT BLOC PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 3 |
||||||
|
7 |
263702 PASSE CABLE PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
264745 COLLIER PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/0/img/66230.jpg)
10 |
COLLIER (D64) ORIGINE PIAGGIO COMMUN A LA GAMME -289690 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/8/1/4/img/117814_20251023145334.jpg)
11 |
FILTRE A AIR ORIGINE PIAGGIO PORTER DIESEL -263703 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
263970 - MANCHON EPURATEUR - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
263969 TUBE Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
464161 - COLLIERS - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
