Eclatés de véhicule - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

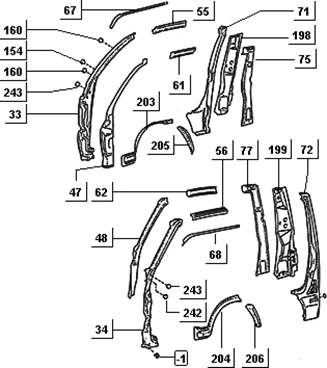

Châssis : T61-51 PANNEAU LATÉRAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T61-51.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/8/img/109868.jpg)
1 |
VIS TH (6X10) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -9162140610000 Plus d'informationsQuantité requise : 1 |
||||||
33 |
MONTANT AVANT EXTERIEUR DROIT ORIGINE PIAGGIO PORTER 2020< -6102787Z01000- Plus d'informationsQuantité requise : 1 |
||||||
|
34 |
6102887Z02000 MONTANT Plus d'informationsQuantité requise : 1 |
||||||
|
47 |
MONTANT DROIT ORIGINE PIAGGIO PORTER 2020< -6102387Z14000- Plus d'informationsQuantité requise : 1 |
||||||
|
48 |
6102487Z14000 DOUBLURE Plus d'informationsQuantité requise : 1 |
||||||
|
55 |
6121187Z02000 LISTEL Plus d'informationsQuantité requise : 1 |
||||||
|
56 |
6121287Z02000 LISTEL Plus d'informationsQuantité requise : 1 |
||||||
|
61 |
6123187Z04000 LISTEL Plus d'informationsQuantité requise : 1 |
||||||
|
61 |
6123187Z03000 LISTEL Plus d'informationsQuantité requise : 1 |
||||||
|
62 |
6123287Z03000 LISTEL Plus d'informationsQuantité requise : 1 |
||||||
|
62 |
6123287Z04000 LISTEL Plus d'informationsQuantité requise : 1 |
||||||
|
67 |
6126187Z01000 GOUTTIERE Plus d'informationsQuantité requise : 1 |
||||||
|
68 |
6126287Z01000 GOUTTIERE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/6/5/img/122265.jpg)
71 |
MONTANT GAUCHE (BIG DECK) ORIGINE PIAGGIO PORTER 2010>2020 -2632315 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/8/2/5/img/121825.jpg)
71 |
MONTANT DROIT ORIGINE PIAGGIO PORTER TRUCK 1992> -6130187Z01000 Plus d'informationsQuantité requise : 1 |
||||||
|
72 |
MONTANT GAUCHE ORIGINE PIAGGIO PORTER 2020< -6130287Z01000- Plus d'informationsQuantité requise : 1 |
||||||
|
72 |
2632325 PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
75 |
6413587Z01000 MONTANT Plus d'informationsQuantité requise : 1 |
||||||
|
77 |
6413687Z01000 MONTANT Plus d'informationsQuantité requise : 1 |
||||||
|
154 |
8638087Z01000 - BOUCHON - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
|
160 |
9004874058000 BOUCHON Plus d'informationsQuantité requise : 2 |
||||||
|
198 |
RENFORT CHASSIS GAUCHE ORIGINE PIAGGIO PORTER 2020< -6419187Z01000- Plus d'informationsQuantité requise : 1 |
||||||
|
199 |
6419287Z01000 PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
203 |
493801 PANNEAU Plus d'informationsQuantité requise : 1 |
||||||
|
204 |
PANNEAU PARE BOUE GAUCHE ORIGINE PIAGGIO PORTER 2020< -D6142287Z0145- Plus d'informationsQuantité requise : 1 |
||||||
|
205 |
6142587Z01000 PANNEAU Plus d'informationsQuantité requise : 1 |
||||||
|
206 |
6142687Z01000 PANNEAU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/0/9/img/110209.jpg)
242 |
BOUCHON/CACHE ORIGINE PIAGGIO PORTER 2020< -D9004874004 Plus d'informationsQuantité requise : 1 |
||||||
|
243 |
BOUCHON/CACHE ORIGINE PIAGGIO PORTER 2020< -D9004874004 Plus d'informationsQuantité requise : 2 |
||||||
|
480 |
BOUCHON/CACHE ORIGINE PIAGGIO PORTER 2020< -D9004874004 Plus d'informationsQuantité requise : 4 |
