Eclatés de véhicule - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 3070) ICE - 2025
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

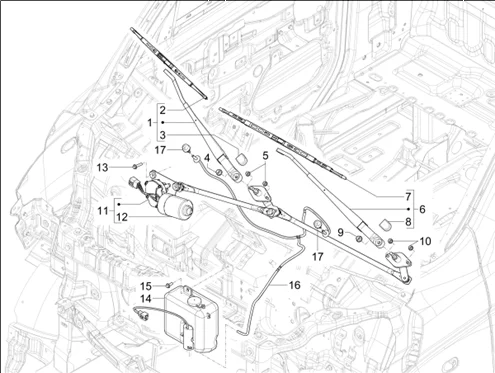

11_circuit électrique : 11.14 14_ESSUIE-GLACES AVANT ET ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1256/Porter_NP6_(SW_3070)_ICE_-_2025_11.14.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/7/9/img/173879.jpg)
1 |
ESSUIE GLACE AVANT DROIT ORIGINE PIAGGIO PORTER NP6 2021> -WET525010201A0 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/8/0/img/173880.jpg)
2 |
BALAI ESSUIE GLACE DROIT ORIGINE PIAGGIO PORTER NP6 2021> -WC3525011300A0 Plus d'informationsQuantité requise : 1 |
||||||
3 |
WET525010600A0 - FRONT WIPER PLUG COVER Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
WQ33008F61 ÉROU HEXAGONAL BRIDE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
WQ32006F61 ÉROU HEXAGONAL BRIDE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/8/1/img/173881.jpg)
6 |
ESSUIE GLACE AVANT GAUCHE ORIGINE PIAGGIO PORTER NP6 2021> -WET525010101A0 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/8/2/img/173882.jpg)
7 |
BALAI ESSUIE GLACE GAUCHE ORIGINE PIAGGIO PORTER NP6 2021> -WC3525011200A0 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
WET525010600A0 - FRONT WIPER PLUG COVER Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
WQ33008F61 ÉROU HEXAGONAL BRIDE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
WQ32006F61 ÉROU HEXAGONAL BRIDE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/8/3/img/173883.jpg)
11 |
MECANISME DE COMMANDE ESSUIE-GLACE ORIGINE PIAGGIO PORTER NP6 2021> -WL0525010339A0 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/8/4/img/173884.jpg)
12 |
MOTEUR ESSUIE-GLACE ORIGINE PIAGGIO PORTER NP6 2021> -WL0525010413A0 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
WQ1840625F62 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/8/5/img/173885.jpg)
14 |
RESERVOIR DE LAVE GLACE AVEC POMPE ORIGINE PIAGGIO PORTER NP6 2021> -WET525020100A0 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
WQ1840616F61 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
WL0525020032A0 TUBE LAVE-VITRE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/8/7/img/173887.JPG)
17 |
GICLEUR LAVE GLACE ARRIERE ORIGINE PIAGGIO PORTER NP6 SW / TW - WL0525020033A0 Plus d'informationsQuantité requise : 2 |
