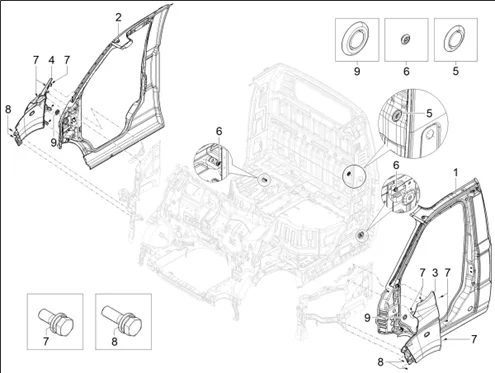

Eclatés de véhicule - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 3070) ICE - 2025
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)
04_châssis - carrosseries : 04.03 03_CHÂSSIS/CAISSE LATÉRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1256/Porter_NP6_(SW_3070)_ICE_-_2025_04.03.png)
1 |
WET50A400100A0 - LEFT SIDE WALL WELDING ASSEMBLY Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
WET50000000122 - RIGHT SIDE WALL WELDMENT ASSEMBLY Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/6/6/img/173366.jpg)
3 |
FLANC DE CARENAGE GAUCHE ORIGINE PIAGGIO PORTER NP6 2021> -WC450A050300A07L Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/6/7/img/173367.jpg)
4 |
FLANC DE CARENAGE DROIT ORIGINE PIAGGIO PORTER NP6 2021> -WC450A050400A07L Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
W1B14881207001 BOUCHON EN CAOUTCHOUC Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
WB1111012 BOUCHON EN CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/9/9/img/173199.jpg)
7 |
VIS TH (6X16) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -WQ146B0616F61 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/7/0/img/173370.jpg)
8 |
VIS TH (6X20) AVEC RONDELLE ORIGNE PIAGGIO COMMUN A LA GAMME -WQ146B0620F62 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/7/7/img/173477.jpg)
9 |
BOUCHON EN CAOUTCHOUC ORIGINE PIAGGIO PORTER NP6 2021> -WB1113512 Plus d'informationsQuantité requise : 2 |
