Chassis : 28.15 CARROSSERIE POSTERIEURE I

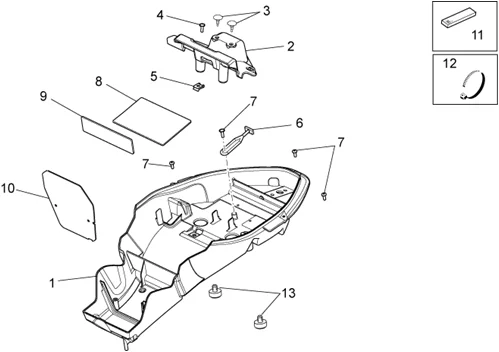

/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_28.15.PNG)
1 |
856675 - LOGEMENT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
860930 - COUVERCLE BATTERIE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
3 |
BOUCHON CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120001- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
4 |
VIS BRIDE BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152298- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.JPG)
6 |
SANGLE ELASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120177- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
7 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339- Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
AP8144553 - GOMMA INF. APPOGGIO BATTERIA Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8144552 - GOMMA LAT. APPOGGIO BATTERIA Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
860988 - PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
890517 - JOINT CONVOYEUR G Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.JPG)
12 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 2,5X99MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120422- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
13 |
TAMPON CAOUTCHOUC DU LOGEMENT DE SELLE ORIGINE APRILIA -AP8220349- Plus d'informationsQuantité requise : 2 |
