Eclatés de véhicule - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

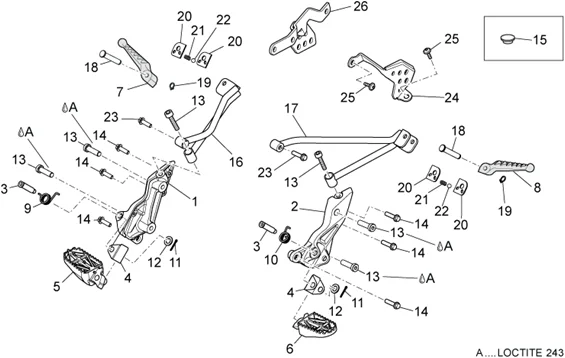

Chassis : 28.04 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_28.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/1/8/7/img/40187.jpg)
1 |
SUPPORT/PLATINE DE REPOSE PIED PILOTE DROIT ORIGINE PIAGGIO APRILIA 750-1200 DORSODURO 2008>2016, 900 DORSODURO 2017> -856779- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/1/8/8/img/40188.jpg)
2 |
SUPPORT/PLATINE DE REPOSE PIED PILOTE GAUCHE ORIGINE PIAGGIO APRILIA 750-1200 DORSODURO 2008>, 900 DORSODURO 2017> -856780- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/2/img/72602.jpg)
3 |
PIVOT DE REPOSE PIED AVANT ORIGINE APRILIA CAPONORD, DORSODURO -AP9100197- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/7/2/6/img/40726.jpg)
4 |
PLAQUE ARTICULATION REPOSE-PIED PILOTE ORIGINE PIAGGIO APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD -859921- Plus d'informationsQuantité requise : 2 |
||||||
5 |
REPOSE PIED PILOTE DROIT ORIGINE PIAGGIO APRILIA 1200 CAPONORD, 750 DORSODURO -859919- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/5/6/7/img/42567.JPG)
5 |
REPOSE PIED DROIT PASSAGER ORIGINE PIAGGIO APRILIA 750 DORSODURO 2008>, 900 DORSODURO 2017>, 1200 DORSODURO 2010> -896664- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/5/6/8/img/42568.jpg)
6 |
REPOSE PIED GAUCHE PASSAGER ORIGINE PIAGGIO APRILIA 750 DORSODURO 2008>, 900 DORSODURO 2017>, 1200 DORSODURO 2010> -896665- Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
859920 - R-PIED PILOTE G * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/0/3/img/50003.jpg)
7 |
REPOSE PIED PASSAGER DROIT ORIGINE PIAGGIO APRILIA 750 SHIVER, DORSODURO, 1000 RSV-2, TUONO, FUTURA, 1200 DORSODURO -AP81464055- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/0/4/img/50004.jpg)
8 |
REPOSE PIED PASSAGER GAUCHE ORIGINE PIAGGIO APRILIA 750 SHIVER 2010>, DORSODURO 2008>, 1000 RSV-2 1998>, TUONO 2002>, FUTURA 2001>, 1200 DORSODURO 2010> -AP81464065- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/0/6/img/97206.jpg)
9 |
RESSORT DE REPOSE PIED PILOTE DROIT ORIGINE PIAGGIO APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD, 450-550 RXV, SXV -AP9100196- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/1/img/72601.jpg)
10 |
RESSORT DE REPOSE PIED PILOTE GAUCHE ORIGINE APRILIA COMMUN A LA GAMME -AP9100195- Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8101606 - GOUPILLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
12 |
RONDELLE PLATE (10.5X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152176- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
13 |
VIS BTR (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150236- Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
14 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278- Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
AP8102600 - BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/6/5/6/img/42656.jpg)
16 |
SUPPORT REPOSE PIED PASSAGER DROIT ORIGINE PIAGGIO APRILIA 750-900-1200 DORSODURO -896936- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/6/5/7/img/42657.jpg)
17 |
SUPPORT REPOSE PIED GAUCHE PASSAGER ORIGINE PIAGGIO APRILIA 750-900-1200 DORSODURO -896940- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/2/img/71472.jpg)
18 |
PIVOT REPOSE-PIED (8X36) ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA/MOTO GUZZI -AP8121566- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
19 |
CLIPS/CIRCLIPS (D-8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152409- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
20 |
PLAQUE FDC REPOSE PIED PASSAGER ORIGINE PIAGGIO COMMUN A LA GAMME -AP8134451- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
21 |
RESSORT DE MAINTIEN REPOSE PIED ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -AP8121133- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
22 |
BILLE BLOCAGE REPOSE PIED ORIGINE PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/ MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE -AP8101861- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
23 |
VIS BRIDE TH (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152289- Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
860987 - PROTECTION * Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
AP8152055 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
26 |
890164 - PROTECTION Plus d'informationsQuantité requise : 1 |
