Eclatés de véhicule - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

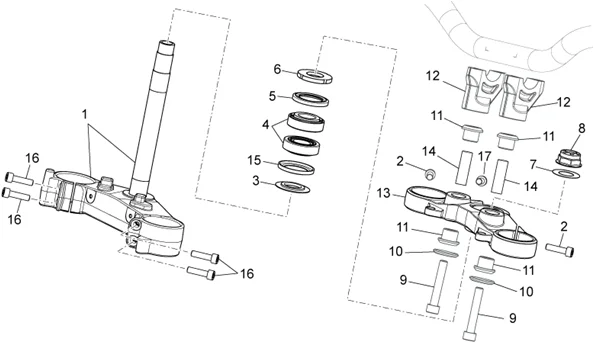

Chassis : 28.06 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_28.06.PNG)
1 |
856496 - BASE AVEC TUBE * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
2 |
VIS BTR (8X30) DE T DE FOURCHE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA/MOTO-GUZZI -AP8150540- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/9/3/img/42793.JPG)
3 |
RONDELLE DE DIRECTION ORIGINE PIAGGIO DORSODURO, SHIVER APRILIA -897648- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8121307 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/7/img/45837.jpg)
4 |
ROULEMENT DE DIRECTION ORIGINE PIAGGIO DORSODURO, SHIVER -AP8110106- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/1/img/71751.jpg)
5 |
JOINT DE JEU DE DIRECTION ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 BREVA, V7, NEVADA -AP8144146- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/8/2/img/72082.jpg)
6 |
ECROU SERRAGE DIRECTION ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 V7, BREVA, NEVADA -AP8163500- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/5/img/71985.jpg)
7 |
RONDELLE DE DIRECTION ORIGINE APRILIA COMMUN A LA GAMME -AP8152442- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
853470 - BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
9 |
VIS BTR (10X60) ORIGINE PIAGGIO COMMUN ALA GAMME -AP8150049- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.JPG)
10 |
RONDELLE SPECIALE DE GUIDON ORIGINE APRILIA/MOTO GUZZI COMMUN A LA GAMME -AP8123721- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/4/img/71754.jpg)
11 |
CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA/MOTO GUZZI -AP8144222- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/5/7/7/img/39577.jpg)
12 |
CAVALIER INFERIEUR FIXATION GUIDON (D28) ORIGINE PIAGGIO APRILIA 750-900 SHIVER -852493- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/4/4/5/img/62445.jpg)
12 |
CAVALIER INFERIEUR DE GUIDON (28.6) ORIGINE PIAGGIO APRILIA 750 DORSODURO 2008>2016 -B044862- Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
856498 - PLAQUE SUP. FOURCHE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
898386 - PLAQUE SUP. FOURCHE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/9/3/img/39893.jpg)
14 |
ENTRETOISE (10,1X14,1X38) ORIGINE PIAGGIO COMMUN A LA GAMME -854827- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/1/img/71231.jpg)
15 |
BAGUE ETANCHEITE COLONNE DIRECTION ORIGINE PIAGGIO APRILIA 50-125 RX, SX, RS, TUONO, 750 DORSODURO, 600-650 PEGASO -AP8104597- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/1/0/img/97210.jpg)
15 |
JOINT PLATINE DE FOURCHE 898386 INFERIEURE ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO -AP9100205- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
16 |
VIS BTR (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150236- Plus d'informationsQuantité requise : 4 |
||||||
|
17 |
AP8152187 - VIS TCEI M 8 X 30 Plus d'informationsQuantité requise : 4 |
