Vehicle Exploded View - VESPA VESPA LXV 50 2T Navy 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

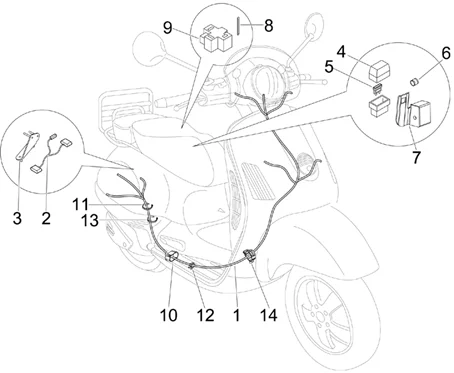

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/719/Vespa_LXV_50_2T_Navy_2007-2008_06.08.PNG)
1 |
639968 - FAISCEAU CABLE More informationQuantity required : 1 |
||||||
|
2 |
216063 - CONNECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/0/3/img/78003.jpg)
3 |
298804 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/1/img/66241.JPG)
4 |
290404 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
5 |
252945 - FUSIBLE 7,5A More informationQuantity required : 1 |
||||||
|
6 |
294754 - PASSE CABLE More informationQuantity required : 1 |
||||||
|
7 |
584305 - EQUERRE More informationQuantity required : 1 |
||||||
|
10 |
CM006906 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
11 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/2/2/img/67822.jpg)
12 |
639082 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
13 |
257134 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
14 |
CM006903 - RESSORT More informationQuantity required : 1 |
