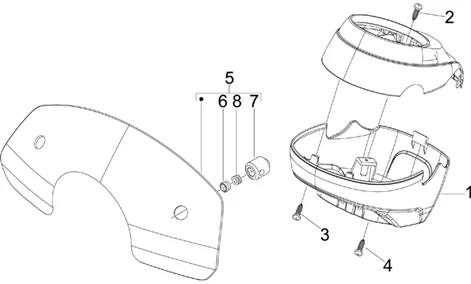

Vehicle Exploded View - VESPA VESPA LXV 50 2T Navy 2007-2008 VESPA

Guidon/direction : 03.01 COUVERTURES GUIDON
Couvertures guidon
Search
624743 - COUVRE GUIDON

1
P2R reference P2R reference 85415
Maker reference Maker reference 624743

624743 - COUVRE GUIDON

More information

Quantity required : 1
62474300DE - CACHE DIRECTION

1
P2R reference P2R reference 85416
Maker reference Maker reference 62474300DE

62474300DE - CACHE DIRECTION

More information

Quantity required : 1
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793-

2
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793-

More information

Quantity required : 2
259577 - VIS

3
P2R reference P2R reference 66038
Maker reference Maker reference 259577

259577 - VIS

More information

Quantity required : 2
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

4
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

More information

Quantity required : 1
WIND SCREEN "PIAGGIO GENUINE PART" 50-125 VESPA LXV -6249915-

5
P2R reference P2R reference 140426
Maker reference Maker reference 6249915

WIND SCREEN "PIAGGIO GENUINE PART" 50-125 VESPA LXV -6249915-

More information

Quantity required : 1
560173 - SILENTBLOC

8
P2R reference P2R reference 66993
Maker reference Maker reference 560173

560173 - SILENTBLOC

More information

Quantity required : 2
