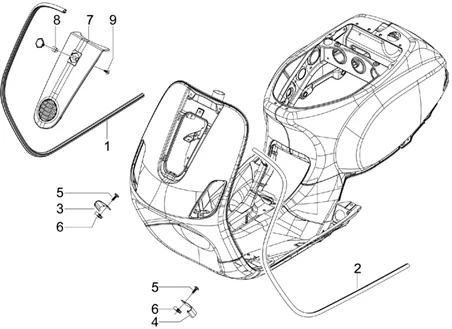

Vehicle Exploded View - VESPA VESPA LXV 50 2T Navy 2007-2008 VESPA

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
Tablier avant
Search
FRONT FAIRING EDGE-RIGHT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622188-

1
P2R reference P2R reference 84570
Maker reference Maker reference 622188

FRONT FAIRING EDGE-RIGHT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622188-

More information

Quantity required : 1
FRONT FAIRING EDGE-LEFT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622187-

2
P2R reference P2R reference 84569
Maker reference Maker reference 622187

FRONT FAIRING EDGE-LEFT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622187-

More information

Quantity required : 1
CLIP FOR ROD OF RIGHT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

3
P2R reference P2R reference 78091
Maker reference Maker reference 299965

CLIP FOR ROD OF RIGHT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

More information

Quantity required : 1
CLIP FOR ROD OF LEFT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

4
P2R reference P2R reference 78090
Maker reference Maker reference 299964

CLIP FOR ROD OF LEFT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

More information

Quantity required : 1
SCREW - -008432-

5
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW - -008432-

More information

Quantity required : 2
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403-

6
P2R reference P2R reference 72921
Maker reference Maker reference CM017403

NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403-

More information

Quantity required : 2
65596400DE - COUVERCLE

7
P2R reference P2R reference 89022
Maker reference Maker reference 65596400DE

65596400DE - COUVERCLE

More information

Quantity required : 1
STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX RAW TO BE PAINT -655964-

7
P2R reference P2R reference 84711
Maker reference Maker reference 655964

STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX RAW TO BE PAINT -655964-

More information

Quantity required : 1
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

8
P2R reference P2R reference 65832
Maker reference Maker reference 199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

More information

Quantity required : 1
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

9
P2R reference P2R reference 66068
Maker reference Maker reference 267958

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

More information

Quantity required : 1
