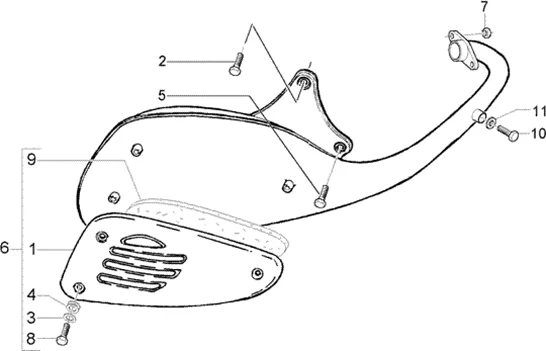

Vehicle Exploded View - VESPA VESPA LX 50 2T 1998-2005 VESPA

Moteur : T18 SILENCIEUX
silencieux
Search
EXHAUST BODY PROTECTION "PIAGGIO GENUINE PART" 50-125 LIBERTY, VESPA LX, VESPA-S, 125 VESPA GTS -8454655-

1
P2R reference P2R reference 93017
Maker reference Maker reference 8454655

EXHAUST BODY PROTECTION "PIAGGIO GENUINE PART" 50-125 LIBERTY, VESPA LX, VESPA-S, 125 VESPA GTS -8454655-

More information

Quantity required : 1
841821 - RONDELLE

3
P2R reference P2R reference 69207
Maker reference Maker reference 841821

841821 - RONDELLE

More information

Quantity required : 3
841782 - PASSE CABLE

4
P2R reference P2R reference 69204
Maker reference Maker reference 841782

841782 - PASSE CABLE

More information

Quantity required : 2
297582 - VIS

5
P2R reference P2R reference 154069
Maker reference Maker reference 297582

297582 - VIS

More information

Quantity required : 2
B0186775 - POT D'ECHAPPEMENT

6
P2R reference P2R reference 94837
Maker reference Maker reference B0186775

B0186775 - POT D'ECHAPPEMENT

More information

Quantity required : 1
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

7
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

More information

Quantity required : 2
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

8
P2R reference P2R reference 71934
Maker reference Maker reference 1C001493

SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

More information

Quantity required : 3
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

8
P2R reference P2R reference 71934
Maker reference Maker reference AP8152267

SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

More information

Quantity required : 3
827050 - COUVERCLE

9
P2R reference P2R reference 68641
Maker reference Maker reference 827050

827050 - COUVERCLE

More information

Quantity required : 1
EXHAUST SCREW/FLANGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -433122-

10
P2R reference P2R reference 66433
Maker reference Maker reference 433122

EXHAUST SCREW/FLANGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -433122-

More information

Quantity required : 1
EXHAUST WASHER Ø10,2xØ15x2 FOR ALL THE RANGE -016195-

11
P2R reference P2R reference 65412
Maker reference Maker reference 0161955

EXHAUST WASHER Ø10,2XØ15X2 FOR ALL THE RANGE -016195-

More information

Quantity required : 1
