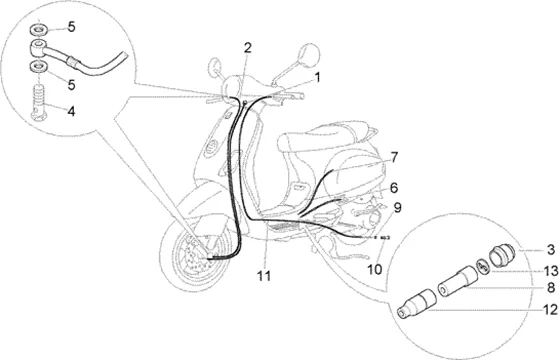

Vehicle Exploded View - VESPA VESPA LX 50 2T 1998-2005 VESPA

Transmisisons : T35 TRANSMISSIONS-TUYAU FREIN
transmissions-tuyau frein
Search
CABLE KIT FOR SPEEDOMETER (SCREW MOUNTING) "PIAGGIO GENUINE PART" VESPA 50-125 LX 2005> -649347-

1
P2R reference P2R reference 86945
Maker reference Maker reference 649347

CABLE KIT FOR SPEEDOMETER (SCREW MOUNTING) "PIAGGIO GENUINE PART" VESPA 50-125 LX 2005> -649347-

More information

Quantity required : 1
666121 - TUYAU

2
P2R reference P2R reference 89986
Maker reference Maker reference 666121

666121 - TUYAU

More information

Quantity required : 1
SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -271976-

3
P2R reference P2R reference 66108
Maker reference Maker reference 271976

SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271976-

More information

Quantity required : 1
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451-

4
P2R reference P2R reference 66050
Maker reference Maker reference 265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451-

More information

Quantity required : 2
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927-

5
P2R reference P2R reference 65723
Maker reference Maker reference 127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927-

More information

Quantity required : 4
THROTTLE TRANSMISSION CABLE "PIAGGIO GENUINE PART" (FROM SPLITTER TO CARB) "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON 2004>2010 -583334-

7
P2R reference P2R reference 67283
Maker reference Maker reference 583334

THROTTLE TRANSMISSION CABLE "PIAGGIO GENUINE PART" (FROM SPLITTER TO CARB) "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON 2004>2010 -583334-

More information

Quantity required : 1
THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571-

8
P2R reference P2R reference 66083
Maker reference Maker reference 269571

THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571-

More information

Quantity required : 1
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640-

9
P2R reference P2R reference 65794
Maker reference Maker reference 179640

REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640-

More information

Quantity required : 1
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310-

10
P2R reference P2R reference 66088
Maker reference Maker reference 270310

NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310-

More information

Quantity required : 1
REAR BRAKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" 50 VESPA LX 5005>, VESPA-S 2005>, ET2 1998>2004, SFERA 1998>2004/GILERA 50 RUNNER 1998>2004 -665912-

11
P2R reference P2R reference 89969
Maker reference Maker reference 665912

REAR BRAKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" 50 VESPA LX 5005>, VESPA-S 2005>, ET2 1998>2004, SFERA 1998>2004/GILERA 50 RUNNER 1998>2004 -665912-

More information

Quantity required : 1
CASIND END FOR DISPATCHER "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS 50cc 2 stroke -269572-

12
P2R reference P2R reference 66084
Maker reference Maker reference 269572

CASIND END FOR DISPATCHER "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS 50CC 2 STROKE -269572-

More information

Quantity required : 1
SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -271977-

13
P2R reference P2R reference 66109
Maker reference Maker reference 271977

SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271977-

More information

Quantity required : 1
