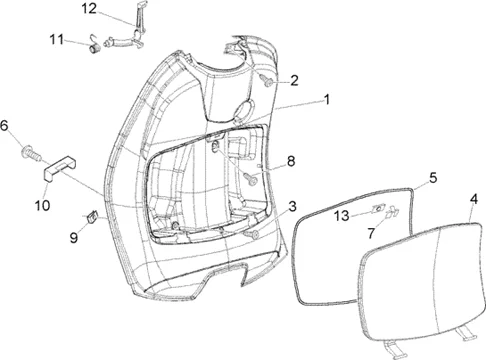

Vehicle Exploded View - VESPA VESPA LX 50 2T 1998-2005 VESPA

Châssis : T22 COFFRE A L'AVANT
coffre a l'avant
Search
62217950F3 - COFFRE

1
P2R reference P2R reference 84566
Maker reference Maker reference 62217950F3

62217950F3 - COFFRE

More information

Quantity required : 1
COUNTER SHIELD "PIAGGIO GENUINE PART" 50 VESPA LX -622898000L-

1
P2R reference P2R reference 84690
Maker reference Maker reference 622898000L

COUNTER SHIELD "PIAGGIO GENUINE PART" 50 VESPA LX -622898000L-

More information

Quantity required : 1
GLOVE BOX COMPARTMENT "PIAGGIO GENUINE PART" 50 VESPA LX -622898000P-

1
P2R reference P2R reference 84691
Maker reference Maker reference 622898000P

GLOVE BOX COMPARTMENT "PIAGGIO GENUINE PART" 50 VESPA LX -622898000P-

More information

Quantity required : 1
SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

2
P2R reference P2R reference 66043
Maker reference Maker reference 259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

More information

Quantity required : 2
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

3
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

More information

Quantity required : 2
GLOVE COMPARTMENT COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA LXV -622115-

4
P2R reference P2R reference 151201
Maker reference Maker reference 622115

GLOVE COMPARTMENT COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA LXV -622115-

More information

Quantity required : 1
622899000P - ABATTANT POUR COFFRE NOIR

4
P2R reference P2R reference 84693
Maker reference Maker reference 622899000P

622899000P - ABATTANT POUR COFFRE NOIR

More information

Quantity required : 1
GLOVE COMPARTMENT COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA LXV -622115-

4
P2R reference P2R reference 151201
Maker reference Maker reference 622899000L

GLOVE COMPARTMENT COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA LXV -622115-

More information

Quantity required : 1
62211550F3 - PORTE COFFRE AV

4
P2R reference P2R reference 84225
Maker reference Maker reference 62211550F3

62211550F3 - PORTE COFFRE AV

More information

Quantity required : 1
FRONT BOOT DOOR GASKET "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, PRIMAVERA, VESPA SPRINT, 125-250-500 X9, BEVERLY -297275-

5
P2R reference P2R reference 66298
Maker reference Maker reference 297275

FRONT BOOT DOOR GASKET "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, PRIMAVERA, VESPA SPRINT, 125-250-500 X9, BEVERLY -297275-

More information

Quantity required : 1
268596 - VIS

6
P2R reference P2R reference 66074
Maker reference Maker reference 268596

268596 - VIS

More information

Quantity required : 4
TRAPDOOR PLATE "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, VESPA LX -573057-

7
P2R reference P2R reference 67091
Maker reference Maker reference 573057

TRAPDOOR PLATE "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, VESPA LX -573057-

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

8
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

More information

Quantity required : 1
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

9
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 4
DOOR FIXING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -257614-

10
P2R reference P2R reference 66022
Maker reference Maker reference 257614

DOOR FIXING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -257614-

More information

Quantity required : 1
GLOVE BOX OPENING LEVER SPRING "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, VESPA LX -257617-

11
P2R reference P2R reference 66023
Maker reference Maker reference 257617

GLOVE BOX OPENING LEVER SPRING "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, VESPA LX -257617-

More information

Quantity required : 1
HOOK - FOR FRONT TRAPDOOR "PIAGGIO GENUINE PART" 125 FLY -295528-

12
P2R reference P2R reference 66281
Maker reference Maker reference 295528

HOOK - FOR FRONT TRAPDOOR "PIAGGIO GENUINE PART" 125 FLY -295528-

More information

Quantity required : 1
DOOR CLOSING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -252420-

13
P2R reference P2R reference 66002
Maker reference Maker reference 252420

DOOR CLOSING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -252420-

More information

Quantity required : 1
