Vehicle Exploded View - VESPA VESPA LX 150 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

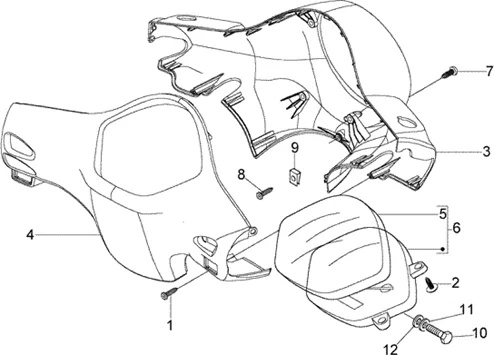

Guidon : T37 COMPTEUR KILOMETRIQUE-COUVERCLES DU GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/706/Vespa_LX_150_1998-2005_T37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
1 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/4/8/3/img/87483.jpg)
3 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" PIAGGIO 50-125 VESPA LX 2017> RAW TO BE PAINT -1B004447- More informationQuantity required : 1 |
||||||
3 |
65293500ND - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
3 |
65293500F3 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
3 |
65293500F2 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
3 |
65293500BM - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
3 |
65293500AA - CACHE GUIDON VESPA LX 422 AURORA More informationQuantity required : 1 |
||||||
|
4 |
65293400R7 - COUVRE GUIDON AR ET4 More informationQuantity required : 1 |
||||||
|
4 |
65293400ND - COUVRE GUIDON AR ET4 More informationQuantity required : 1 |
||||||
|
4 |
65293400F3 - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
4 |
65293400F2 - COUVRE GUIDON AR ET4 More informationQuantity required : 1 |
||||||
|
4 |
65293400BM - COUVRE GUIDON AR ET4 More informationQuantity required : 1 |
||||||
|
4 |
65293400AA - COUVRE GUIDON AR ET4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/1/img/67831.jpg)
5 |
DASHBOARD GLASS "PIAGGIO GENUINE PART" 50-125 LIBERTY, VESPA LX -639414- More informationQuantity required : 1 |
||||||
|
6 |
58156R - GROUPE INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING OR FLASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008457- More informationQuantity required : 1 |
||||||
|
8 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
9 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
10 |
031056 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
11 |
016405 - RONDELLE S01640500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
12 |
006078 - RONDELLE S00607800 More informationQuantity required : 1 |
