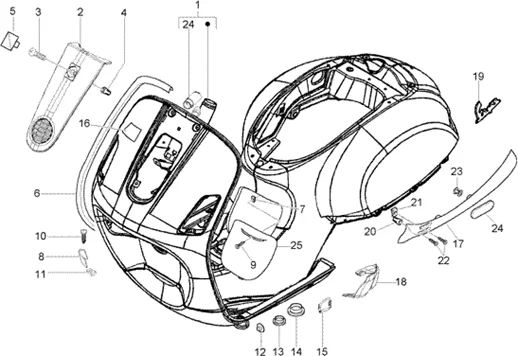

Vehicle Exploded View - VESPA VESPA LX 150 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)
Châssis : T26 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/706/Vespa_LX_150_1998-2005_T26.PNG)
1 |
78120850R7 - COQUE More informationQuantity required : 1 |
|||||||||
|
1 |
FRAME - RAW -1B00478701- More informationQuantity required : 1 |
|||||||||
|
1 |
FRAME - RAW -1B00478701- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/0/2/9/img/89029.jpg)
2 |
STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX BLACK 79/A -65596400ND- More informationQuantity required : 1 |
|||||||||
|
2 |
65596400R7 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
2 |
62290760BM - CACHE DIRECTION AV More informationQuantity required : 1 |
|||||||||
|
2 |
STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX RAW TO BE PAINT -655964- More informationQuantity required : 1 |
|||||||||
|
2 |
62290760AA - CACHE DIRECTION AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
3 |
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
4 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/9/img/67129.jpg)
5 |
DECAL- "PIAGGIO GENUINE PART" 125 VESPA PX (VNX-VSX) -576464- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/5/7/0/img/84570.jpg)
6 |
FRONT FAIRING EDGE-RIGHT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622188- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/5/6/9/img/84569.jpg)
6 |
FRONT FAIRING EDGE-LEFT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622187- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
7 |
NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/9/0/img/78090.jpg)
8 |
CLIP FOR ROD OF LEFT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/9/1/img/78091.jpg)
8 |
CLIP FOR ROD OF RIGHT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
9 |
015911 - VIS S01591100 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
10 |
SCREW - -008432- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
11 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/6/img/78066.jpg)
12 |
299558 - BOUCHON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/5/img/78065.jpg)
13 |
299557 - BOUCHON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/7/img/78067.jpg)
14 |
299559 - BOUCHON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/6/8/4/img/83684.jpg)
15 |
620556 - BOUCHON More informationQuantity required : 2 |
|||||||||
|
16 |
656224 - PLAQUETTE LX 150 More informationQuantity required : 1 |
|||||||||
|
17 |
62212840R7 - CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
|
17 |
62212840ND - CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
|
17 |
62212840F3 - CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
|
17 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA LX 50-125 1998>2008 GREY 738/A -62212840F2- More informationQuantity required : 1 |
|||||||||
|
17 |
62212840BM - CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
|
17 |
62212740F2 - TAPIS CENTRAL More informationQuantity required : 1 |
|||||||||
|
17 |
62212740BM - TAPIS CENTRAL More informationQuantity required : 1 |
|||||||||
|
17 |
62212740AA - TAPIS CENTRAL More informationQuantity required : 1 |
|||||||||
|
17 |
62212740ND - TAPIS CENTRAL More informationQuantity required : 1 |
|||||||||
|
17 |
62212740F3 - TAPIS CENTRAL More informationQuantity required : 1 |
|||||||||
|
17 |
62212840AA - CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/3/2/7/img/84327.jpg)
17 |
62212740R7 - TAPIS CENTRAL More informationQuantity required : 1 |
|||||||||
|
18 |
62212940F3 - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
|||||||||
|
18 |
62212940AA - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
|||||||||
|
18 |
62212940BM - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
|||||||||
|
18 |
RIGHT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S RED 894 -62213040R7- More informationQuantity required : 1 |
|||||||||
|
18 |
62213040ND - COUVERTURE SPOILER DR More informationQuantity required : 1 |
|||||||||
|
18 |
62213040F3 - COUVERTURE SPOILER DR More informationQuantity required : 1 |
|||||||||
|
18 |
62212940F2 - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
|||||||||
|
18 |
62213040BM - COUVERTURE SPOILER DR More informationQuantity required : 1 |
|||||||||
|
18 |
62213040AA - COUVERTURE SPOILER DR More informationQuantity required : 1 |
|||||||||
|
18 |
LEFT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S RED 894 -6221294R7D- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/4/1/4/img/84414.jpg)
18 |
LEFT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S BLACK 79/A -62212940ND- More informationQuantity required : 1 |
|||||||||
|
18 |
RIGHT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S GREY 738/A -62213040F2- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/3/1/img/89131.jpg)
19 |
DECAL "VESPA" "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 50-125 VESPA -656220- More informationQuantity required : 1 |
|||||||||
|
20 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
21 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
22 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
23 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888- More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/6/img/66306.jpg)
24 |
LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604- More informationQuantity required : 1 |
|||||||||
|
25 |
62213660F2 - ABATTANT AVT More informationQuantity required : 1 |
|||||||||
|
25 |
62213660AA - ABATTANT AVT More informationQuantity required : 1 |
|||||||||
|
25 |
62213660BM - ABATTANT AVT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/5/0/5/img/84505.JPG)
25 |
SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PART" 50-125 VESPA LX RED 584 -62213650R7- More informationQuantity required : 1 |
|||||||||
|
25 |
62213660F3 - ABATTANT AVT More informationQuantity required : 1 |
|||||||||
|
25 |
62213660ND - ABATTANT AVT More informationQuantity required : 1 |
|||||||||
