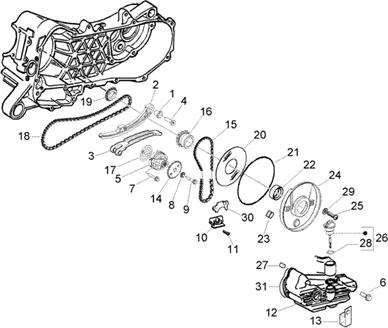

Vehicle Exploded View - VESPA VESPA LX 150 1998-2005

	P2R reference	66693
	Maker reference	485868

SPACER- -485868-

	P2R reference	69152
	Maker reference	840510

TIMING CHAIN SLIDING BLOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -840510-

	P2R reference	68744
	Maker reference	828308

TIMING CHAIN SLIDING BLOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -828308-

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	72720
	Maker reference	414837

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	68849
	Maker reference	82948R

OIL PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -82948R-

	P2R reference	72725
	Maker reference	B016792

SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792-

	P2R reference	68858
	Maker reference	829593

829593 - BOULON

	P2R reference	66501
	Maker reference	436695

436695 - CONE ELASTIQUE 6X20

	P2R reference	72706
	Maker reference	B016426

B016426 - VIS TEF M6X14

	P2R reference	66640
	Maker reference	483767

483767 - PANNEAU INF!RIEURE

	P2R reference	68890
	Maker reference	830061

830061 - VIS

	P2R reference	69299
	Maker reference	843761

MOTOR OIL CUP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125 CC -843761-

	P2R reference	66758
	Maker reference	487824

487824 - COLLIER

	P2R reference	66182
	Maker reference	287913

287913 - COURONNE

	P2R reference	68605
	Maker reference	82649R

OIL PUMP CHAIN "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125-250-300 CC -82649R

	P2R reference	68703
	Maker reference	82783R

OIL PUMP DRIVING GEAR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -82783R

	P2R reference	69547
	Maker reference	847929

847929 - JOINT

	P2R reference	68598
	Maker reference	82643R

TIMING CHAIN "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8 STREET, VESPA LX, VESPA-S/APRILIA 125 SPORT-CITY, MOJITO -82643R-

	P2R reference	68700
	Maker reference	82782R

82782R - PIGNON DISTR.

	P2R reference	66651
	Maker reference	483918

CRANKSHAFT OIL SEAL WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -483918

	P2R reference	68555
	Maker reference	825620

825620 - BAGUE D'!TANCH!ITE

	P2R reference	68540
	Maker reference	82538R

SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON VARIATOR SIDE) PIAGGIO 125-250 X-EVO, X8, X9, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC -82538R -

	P2R reference	66447
	Maker reference	434345

434345 - TAMPON.

	P2R reference	69466
	Maker reference	847116

TIMING SYSTEM COVER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC -847116

	P2R reference	65383
	Maker reference	0155855

SCREW - 5X12 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015585-

	P2R reference	69279
	Maker reference	843364

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -843364-

	P2R reference	66142
	Maker reference	277916

CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916-

	P2R reference	158280
	Maker reference	479986

1A009397 - JOINT "OR"

	P2R reference	158280
	Maker reference	1A009397

1A009397 - JOINT "OR"

	P2R reference	66766
	Maker reference	487937

487937 - RONDELLE

	P2R reference	66670
	Maker reference	485047

485047 - PANNEAU SUP!RIEURE

	P2R reference	68896
	Maker reference	830128

OIL HOUSING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 -830128-
