Vehicle Exploded View - VESPA VESPA GTV 300 HPE E5 ABS RST 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

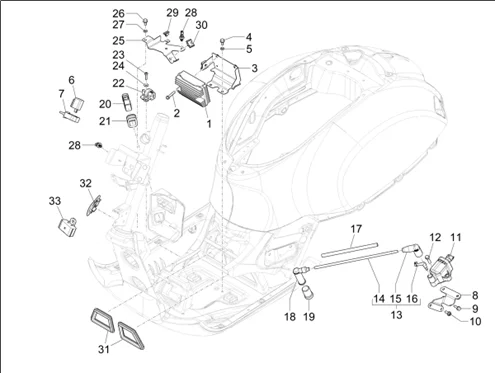

Circuit électrique : 06.06 RÉGULATEURS DE TENSION - CENTRALES ELECTRONIQUES - BOBINE H.T.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1254/Vespa_GTV_300_HPE_E5_ABS_RST_2023_(EMEA)_06.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/0/img/67940.jpg)
1 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125-300-350 MP3, BEVERLY, 125-250-300 GTS/APRILIA 300 ATLANTIC -641709 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
2 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 2 |
||||||
3 |
1B003878 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
4 |
B016426 - VIS TEF M6X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
|
6 |
1D004022 - BLINKER DEVICE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/6/img/66246.jpg)
7 |
291017 - SUPPORT More informationQuantity required : 1 |
||||||
|
8 |
1A014318 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
9 |
830061 - VIS More informationQuantity required : 1 |
||||||
|
10 |
878872 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/7/img/67947.jpg)
11 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 FLY3 VALVES, LIBERTY 3 VALVES, VESPA LX 3 VALVES, 125-350 YOURBAN, BEVERLY, X-10 -641901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
12 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 2 |
||||||
|
13 |
CM083306 - CABLE H.T. (L=240) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
14 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/0/3/img/67903.jpg)
15 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER 125 CC -641040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/2/img/67942.jpg)
16 |
INSULATION SHELL FOR SPARK PLUG CAP "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 125CC -6417256 More informationQuantity required : 1 |
||||||
|
17 |
CM079401 - INSULATING PLAIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/9/img/70969.jpg)
18 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -969348 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/7/img/67937.jpg)
19 |
SPARK PLUG PROTECTION CLAMP "PIAGGIO GENUINE PART" -641643 More informationQuantity required : 1 |
||||||
|
20 |
1D002753 - PRISE USB More informationQuantity required : 1 |
||||||
|
21 |
1B001591 - PASSE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/4/1/2/img/174412_20251023150511.jpg)
22 |
2D000473 - ROLL OVER SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
23 |
015597 - VIS S01559700 More informationQuantity required : 1 |
||||||
|
24 |
224664 - RONDELLE More informationQuantity required : 1 |
||||||
|
25 |
1B003943 - SUPPORT More informationQuantity required : 1 |
||||||
|
26 |
B016426 - VIS TEF M6X14 More informationQuantity required : 1 |
||||||
|
27 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
28 |
1D001143 - COLLIER More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
29 |
639560 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/1/2/img/86212.jpg)
30 |
641599 - RESSOT More informationQuantity required : 1 |
||||||
|
31 |
1B003958 - PROTECTION More informationQuantity required : 2 |
||||||
|
32 |
1B003939 - PROTECTION CHASSIS More informationQuantity required : 1 |
||||||
|
33 |
1D002621 - BOUCHON More informationQuantity required : 1 |
