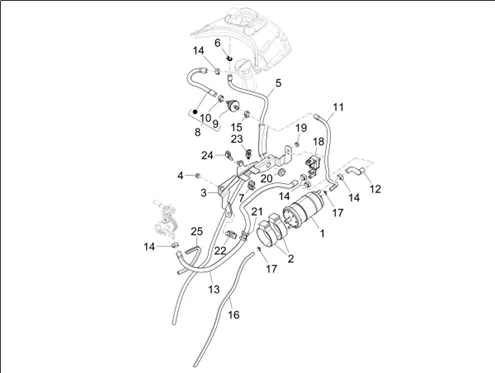

Châssis - parties plastiques - carrosseries : 02.61 SYSTÈME ANTI-ÉVAPORATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1289/Vespa_GTS_125_ABS_E5_Super_Sport-SuperTech_2022_02.61.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/1/0/img/140010.jpg)
1 |
1B003695 - CANISTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/1/4/img/140014.jpg)
2 |
1B003721 - PLAQUETTE More informationQuantity required : 2 |
||||||
3 |
1B009846 - SUPPORTO CANISTER CON P.I. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
4 |
241936 - ECROU More informationQuantity required : 2 |
||||||
|
5 |
CM001449 - TUYAU RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
6 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
7 |
CM013201 - RESSORT More informationQuantity required : 1 |
||||||
|
8 |
1B008392 - ASSY VENT PIPE More informationQuantity required : 1 |
||||||
|
9 |
CM292102 - SOUPAPE PRESSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
10 |
CM001914 - COLLIER More informationQuantity required : 1 |
||||||
|
11 |
CM283451 - HOSE More informationQuantity required : 1 |
||||||
|
12 |
CM177992 - TUYAU More informationQuantity required : 1 |
||||||
|
13 |
CM177923 - TUYAU SAE J30 R11-A O R12 1/4" L=1125 More informationQuantity required : 1 |
||||||
|
14 |
CM001914 - COLLIER More informationQuantity required : 5 |
||||||
|
15 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 1 |
||||||
|
16 |
CM283427 - TUYAU More informationQuantity required : 1 |
||||||
|
17 |
CM283701 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/3/0/6/img/174306.jpg)
18 |
1B008603 - AIR VALVE More informationQuantity required : 1 |
||||||
|
19 |
241936 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/7/img/68487.jpg)
20 |
702195 - PASSE CABLES More informationQuantity required : 1 |
||||||
|
21 |
1B001631 - GROMMET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
22 |
CM006905 - RESSOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
23 |
1D001143 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
24 |
298729 - COLLIER More informationQuantity required : 1 |
||||||
|
25 |
CM023903 - JOINT More informationQuantity required : 1 |
