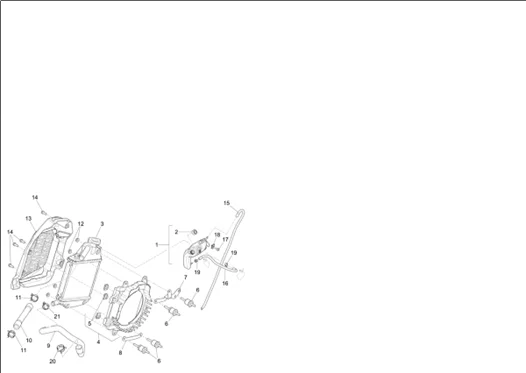

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1289/Vespa_GTS_125_ABS_E5_Super_Sport-SuperTech_2022_02.55.png)
1 |
1B006135 - RESERVOIR DE REFROIDISSEMENT More informationQuantity required : 1 |
||||||
|
2 |
1B010833 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/6/7/img/146267.jpg)
3 |
1A008047 - RADIATEUR More informationQuantity required : 1 |
||||||
|
4 |
1A007893 - PRISE AIR GAUCHE More informationQuantity required : 1 |
||||||
|
5 |
1A003988 - PLAQUETTE More informationQuantity required : 3 |
||||||
|
6 |
1A021966R - RADIATOR SUPPORT SPACER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/7/9/img/195879.jpg)
7 |
1A017066 - RADIATOR UPPER BRACKET WITH I.P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/8/0/img/195880.jpg)
8 |
1A017430 - RADIATOR LOWER BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/8/1/img/195881.jpg)
9 |
1A019402 - TUBE POMPE RADIATEUR More informationQuantity required : 1 |
||||||
|
10 |
1A006075 - TUYAU EAU More informationQuantity required : 1 |
||||||
|
11 |
CM226910 - COLLIER FBS 24/12 More informationQuantity required : 2 |
||||||
|
12 |
874558 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/4/7/7/img/174477.jpg)
13 |
1A019945 - RADIATOR COVER More informationQuantity required : 1 |
||||||
|
14 |
1A006359 - VIS M6X16 More informationQuantity required : 4 |
||||||
|
15 |
CM001444 - TUYAU RENIFLARD More informationQuantity required : 1 |
||||||
|
16 |
CM278701 - TUYAU ESSENCE L=280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
17 |
CM179301 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
18 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
19 |
CM001901 - COLLIER More informationQuantity required : 2 |
||||||
|
20 |
CM226911 - COLLIER FBS 26/12 More informationQuantity required : 1 |
||||||
|
21 |
CM226903 - COLLIER More informationQuantity required : 1 |
All the exploded views of this vehicle
-
-
