Vehicle Exploded View - VESPA VESPA GTS 125 ABS E5 Super Sport-SuperTech 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

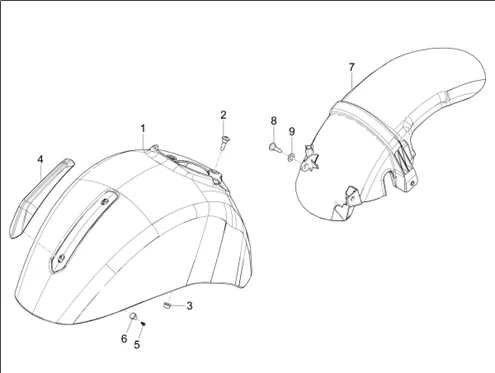

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1289/Vespa_GTS_125_ABS_E5_Super_Sport-SuperTech_2022_02.33.png)
1 |
1B009438000HQ - FRONT FENDER More informationQuantity required : 1 |
||||||
|
1 |
1B009438000DY - FRONT FENDER More informationQuantity required : 1 |
||||||
|
1 |
1B009438000G22 - FRONT FENDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/6/0/img/200960.jpg)
1 |
1B009438000G23 - FRONT FENDER More informationQuantity required : 1 |
||||||
|
1 |
1B009438000R7 - FRONT FENDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/6/2/img/200962.jpg)
1 |
1B00943800090 - FRONT FENDER More informationQuantity required : 1 |
||||||
|
1 |
1B009438000Q01 - FRONT FENDER More informationQuantity required : 1 |
||||||
|
1 |
1B009438000VK - FRONT FENDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/6/5/img/200965.jpg)
1 |
1B009438000XN2 - FRONT FENDER More informationQuantity required : 1 |
||||||
|
1 |
1B009438000A11 - FRONT FENDER More informationQuantity required : 1 |
||||||
|
1 |
1B009438000B04 - FRONT FENDER More informationQuantity required : 1 |
||||||
|
1 |
1B009438000NV - FRONT FENDER More informationQuantity required : 1 |
||||||
|
1 |
1B009438000V03 - FRONT FENDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/7/0/img/200970.jpg)
1 |
1B009438 - FRONT FENDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
3 |
241936 - ECROU More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
3 |
012138 - ECROU S01213800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/7/1/img/200971.jpg)
4 |
1B009439000K1 - UPPER CREST More informationQuantity required : 1 |
||||||
|
4 |
1B00943900090 - UPPER CREST More informationQuantity required : 1 |
||||||
|
4 |
1B009439000G24 - UPPER CREST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
5 |
SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/7/2/img/75172.jpg)
6 |
CAP FOR MUDGUARD "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS VESPA -192598 More informationQuantity required : 2 |
||||||
|
7 |
1B011653 - GARDE-BOUE AR. More informationQuantity required : 1 |
||||||
|
7 |
1B012452 - GARDE-BOUE AR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
8 |
018639 - VIS More informationQuantity required : 1 |
||||||
|
9 |
1C003287 - ENTRETOISE More informationQuantity required : 1 |
