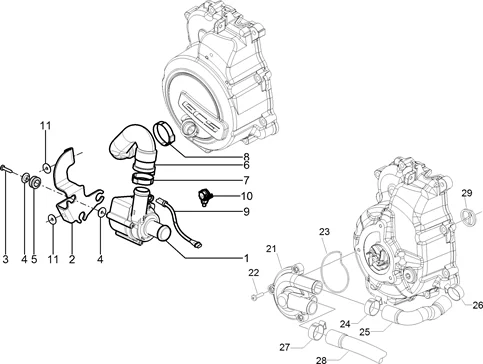

Moteur : 01.19 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/772/Vespa_GTS_125_4T_ie_Super_E3_2009-2016_01.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/7/4/img/89174.jpg)
1 |
WATER PUMP "PIAGGIO GENUINE PART" 125 VESPA GTS IE 2009>2016 -656304 More informationQuantity required : 1 |
||||||
2 |
876400 - ETRIER POMPE A EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/7/img/65407.jpg)
3 |
015994 - VIS S01599400 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/6/8/img/70568.jpg)
4 |
874991 - ENTRETOISE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
5 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665 More informationQuantity required : 3 |
||||||
|
6 |
878458 - TUYAU EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/1/img/72881.jpg)
7 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM001922 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/6/img/72876.jpg)
8 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001915 More informationQuantity required : 1 |
||||||
|
9 |
641345 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
10 |
CM006910 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
11 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/6/6/img/70666.jpg)
21 |
WATER PUMP COVER (3 HOSES) "PIAGGIO GENUINE PART" 125-250-300 MP3, X7, 125-250 X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC (COMPATIBLE WITH 8482585) -877528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
22 |
SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/7/1/img/66671.jpg)
23 |
O'RING GASKET FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -485080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/9/0/img/70690.jpg)
24 |
COOLANT HOSE - WATER PUMP TO CYLINDER "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125 CC -878666 More informationQuantity required : 1 |
||||||
|
25 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM001922 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
26 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904 More informationQuantity required : 1 |
||||||
|
27 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/1/img/70701.jpg)
28 |
COOLANT HOSE "PIAGGIO GENUINE PART" (FROM WATER PUMP TO CALORSTAT) PIAGGIO 125-250-300 MAXISCOOTER -878940 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/1/img/69231.jpg)
29 |
WATER PUMP DRIVE SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -842390 More informationQuantity required : 1 |
