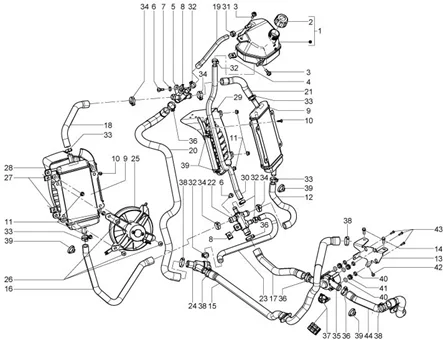

Vehicle Exploded View - VESPA VESPA GTS 125 4T ie Super E3 2009-2016

	P2R reference	213710
	Maker reference	1B012355

1B012355 - RéSERVOIR

	P2R reference	89656
	Maker reference	657110
	Replaced by référence 213710

COOLANT TANK "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -657110

	P2R reference	67743
	Maker reference	623673

COOLANT TANK CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -623673

	P2R reference	77031
	Maker reference	257404

257404 - VIS

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	81139
	Maker reference	577195

577195 - RACCORD

	P2R reference	67113
	Maker reference	575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

	P2R reference	73364
	Maker reference	CM179201

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	81130
	Maker reference	577183

COOLING RADIATOR "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -577183

	P2R reference	66092
	Maker reference	270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

	P2R reference	96280
	Maker reference	CM178606

SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606

	P2R reference	66187
	Maker reference	288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245

	P2R reference	81141
	Maker reference	577201

577201 - TUYAU

	P2R reference	89422
	Maker reference	656640

656640 - SUPPORT

	P2R reference	72723
	Maker reference	B016777

B016777 - VIS

	P2R reference	89453
	Maker reference	656723

656723 - TUYAU

	P2R reference	80196
	Maker reference	57313R

57313R - TUYAU

	P2R reference	89424
	Maker reference	656642

656642 - TUYAU

	P2R reference	81170
	Maker reference	577384

577384 - TUYAU

	P2R reference	81243
	Maker reference	577433

577433 - TUYAU

	P2R reference	80212
	Maker reference	57333R

57333R - TUYAU

	P2R reference	89451
	Maker reference	656721

656721 - TUYAU

	P2R reference	84746
	Maker reference	623013

623013 - TUYAU

	P2R reference	89310
	Maker reference	656449

5 WAY CONNECTION (FOR COOLING) "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, GTV -656449-

	P2R reference	89670
	Maker reference	6571224

6571224 - TUYAU

	P2R reference	89452
	Maker reference	656722

656722 - TUYAU

	P2R reference	69563
	Maker reference	848140

THERMOSTAT "PIAGGIO GENUINE PART" 400-500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, NEXUS -848140

	P2R reference	82103
	Maker reference	584669

COOLING FAN "PIAGGIO GENUINE PARTS" VESPA 125-250 GTS, GTV -584669-

	P2R reference	66117
	Maker reference	272836

SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836

	P2R reference	73366
	Maker reference	CM179301

CM179301 - VIS

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	81132
	Maker reference	577187

RADIATOR LEFT AIR INTAKE "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -577187-

	P2R reference	84685
	Maker reference	622839

622839 - CANALISATION POUR AIR

	P2R reference	80198
	Maker reference	57314R

57314R - TUYAU EAU RADIATEUR

	P2R reference	72865
	Maker reference	CM001903

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903

	P2R reference	72866
	Maker reference	CM001904

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904

	P2R reference	72867
	Maker reference	CM001905

CM001905 - COLLIER

	P2R reference	72868
	Maker reference	CM001907

COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907

	P2R reference	89174
	Maker reference	656304

WATER PUMP "PIAGGIO GENUINE PART" 125 VESPA GTS IE 2009>2016 -656304

	P2R reference	72876
	Maker reference	CM001915

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001915

	P2R reference	72905
	Maker reference	CM006903

CM006903 - RESSORT

	P2R reference	72881
	Maker reference	CM001922

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM001922

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298

	P2R reference	70568
	Maker reference	874991

874991 - ENTRETOISE

	P2R reference	66744
	Maker reference	487665

FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665

	P2R reference	75201
	Maker reference	195087

195087 - TAMPON

	P2R reference	66264
	Maker reference	293717

293717 - BOUCHON

	P2R reference	65407
	Maker reference	0159945

015994 - VIS S01599400

	P2R reference	89423
	Maker reference	656641

656641 - TUYAU
