Vehicle Exploded View - VESPA VESPA GTS 125 4T E3 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

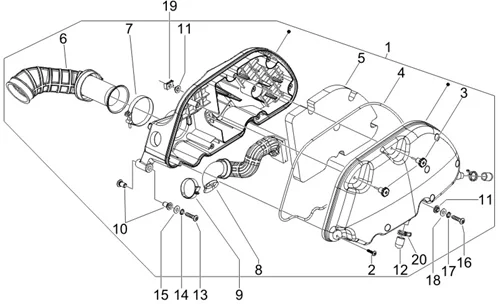

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/958/Vespa_GTS_125_4T_E3_2007-2012_01.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/7/6/img/92976.jpg)
1 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" 125 X8, X9, X-EVO, MP3, VESPA GTS -843489- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
2 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/3/img/66573.jpg)
3 |
479132 - BOUTON More informationQuantity required : 2 |
||||||
4 |
844428 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/7/4/img/157074.jpg)
5 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM - 125 X-EVO 2007>, MP3 2006>, VESPA GT 2004>, VESPA GTS 2007>, X8 2004>, 125 X9-EVO 2007>, 250 MP3 2006>, 300 MP3 2010> -8319970P- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/4/9/img/92949.jpg)
6 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" 125 X-EVO, X9, X8, MP3, VESPA GTS -841515- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/6/img/66046.JPG)
7 |
260918 - BRIDE More informationQuantity required : 1 |
||||||
|
8 |
844921 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
9 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/9/img/68889.jpg)
10 |
830057 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
11 |
830056 - BAGUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/1/img/68701.jpg)
12 |
CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/8/img/65448.jpg)
13 |
SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
14 |
012533 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
15 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640- More informationQuantity required : 2 |
||||||
|
17 |
012533 - RONDELLE More informationQuantity required : 2 |
||||||
|
18 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
19 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
20 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910- More informationQuantity required : 2 |
