Vehicle Exploded View - VESPA VESPA GTS 125 4T E3 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

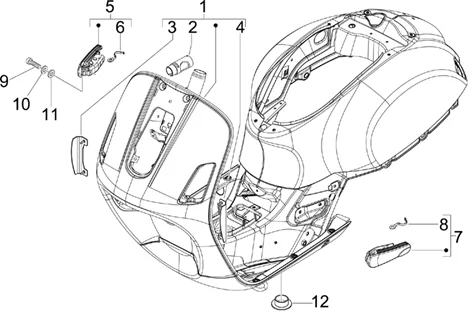

Chassis-parties plastiques-carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/958/Vespa_GTS_125_4T_E3_2007-2012_02.01.PNG)
1 |
FRAME "PIAGGIO GENUINE PART" VESPA 125-250 GTS BLACK 94 -6722840090- More informationQuantity required : 1 |
||||||
|
1 |
1B000837500R7 - COQUE More informationQuantity required : 1 |
||||||
|
1 |
1B0008635000DE - CHÁSSIS More informationQuantity required : 1 |
||||||
|
1 |
1B0007525000M4 - CHÁSSIS More informationQuantity required : 1 |
||||||
|
1 |
1B0008635 - CHASSIS More informationQuantity required : 1 |
||||||
|
1 |
FRAME "PIAGGIO GENUINE PART" VESPA 125-250-300 GTS BLACK 98/A -67228450XN2- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/6/img/66306.jpg)
2 |
LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604- More informationQuantity required : 1 |
||||||
|
3 |
577398 - SUPPORT More informationQuantity required : 1 |
||||||
|
4 |
577397 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/0/8/img/80208.JPG)
5 |
57327R - REPOSE-PIED DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/6/1/2/img/83612.jpg)
6 |
620395 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/0/7/img/80207.JPG)
7 |
LEFT FOOTREST "PIAGGIO GENUINE PART" VESPA 125-250-300 GTS -57326R- More informationQuantity required : 1 |
||||||
|
8 |
620395 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/6/3/img/71063.jpg)
9 |
975855 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
10 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
11 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/5/img/78065.jpg)
12 |
299557 - BOUCHON More informationQuantity required : 2 |
