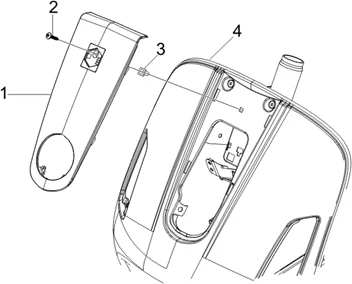

Vehicle Exploded View - VESPA VESPA GTS 125 4T E3 2007-2012 VESPA

Chassis-parties plastiques-carrosseries : 02.26 TABLIER AVANT
Tablier avant
Search
621143 - CACHE DIRECTION

1
P2R reference P2R reference 83882
Maker reference Maker reference 621143

621143 - CACHE DIRECTION

More information

Quantity required : 1
STEERING COVER- "PIAGGIO GENUINE PART" 125-250 VESPA GTS 2005>2016 GREY 738 -62114360F2-

1
P2R reference P2R reference 83899
Maker reference Maker reference 62114360F2

STEERING COVER- "PIAGGIO GENUINE PART" 125-250 VESPA GTS 2005>2016 GREY 738 -62114360F2-

More information

Quantity required : 1
STEERING COVER- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS RED 894 -62114350R7-

1
P2R reference P2R reference 83896
Maker reference Maker reference 62114350R7

STEERING COVER- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS RED 894 -62114350R7-

More information

Quantity required : 1
62114350M5 - CACHE DIRECTION

1
P2R reference P2R reference 83895
Maker reference Maker reference 62114350M5

62114350M5 - CACHE DIRECTION

More information

Quantity required : 1
62114350M4 - CACHE DIRECTION

1
P2R reference P2R reference 83894
Maker reference Maker reference 62114350M4

62114350M4 - CACHE DIRECTION

More information

Quantity required : 1
62114350GV - CACHE DIRECTION

1
P2R reference P2R reference 83893
Maker reference Maker reference 62114350GV

62114350GV - CACHE DIRECTION

More information

Quantity required : 1
STEERING COVER- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS YELLOW 928/A -62114350GP-

1
P2R reference P2R reference 83892
Maker reference Maker reference 62114350GP

STEERING COVER- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS YELLOW 928/A -62114350GP-

More information

Quantity required : 1
62114350EU - CACHE DIRECTION

1
P2R reference P2R reference 83891
Maker reference Maker reference 62114350EU

62114350EU - CACHE DIRECTION

More information

Quantity required : 1
62114350EP - CACHE DIRECTION

1
P2R reference P2R reference 83890
Maker reference Maker reference 62114350EP

62114350EP - CACHE DIRECTION

More information

Quantity required : 1
STEERING COVER- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS BLUE 222/A -62114340DE-

1
P2R reference P2R reference 83885
Maker reference Maker reference 62114340DE

STEERING COVER- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS BLUE 222/A -62114340DE-

More information

Quantity required : 1
62114340XN2 - CACHE DIRECTION

1
P2R reference P2R reference 83888
Maker reference Maker reference 62114340XN2

62114340XN2 - CACHE DIRECTION

More information

Quantity required : 1
6211434090 - CACHE-DIRECTION

1
P2R reference P2R reference 83883
Maker reference Maker reference 6211434090

6211434090 - CACHE-DIRECTION

More information

Quantity required : 1
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

2
P2R reference P2R reference 66068
Maker reference Maker reference 267958

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

More information

Quantity required : 1
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

3
P2R reference P2R reference 65832
Maker reference Maker reference 199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

More information

Quantity required : 1
FRONT SHIELD - TO WELD- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -6722835-

4
P2R reference P2R reference 90709
Maker reference Maker reference 6722835

FRONT SHIELD - TO WELD- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -6722835-

More information

Quantity required : 1
