Vehicle Exploded View - VESPA VESPA ET2 50 Vespa ET2 Iniezione 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

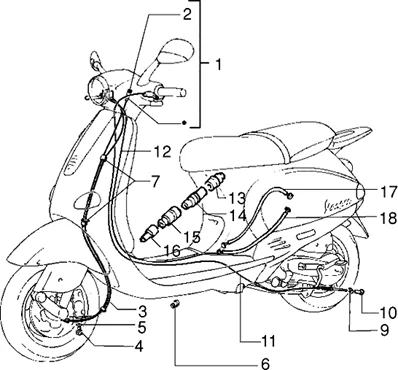

Transmisisons : T35 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/712/Vespa_ET2_Iniezione_1998-2005_T35.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/7/2/img/79772.jpg)
1 |
CABLE KIT FOR FOR SPEEDOMETER "PIAGGIO GENUINE PART" 50 ET2 1998>2004, 125 ET4 1998>2004 -56116R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/0/4/img/79804.jpg)
2 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 VESPA ET2, 125 VESPA ET4, 125-250 HEXAGON -561806- More informationQuantity required : 1 |
||||||
3 |
563886 - CANALISATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
4 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
5 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927- More informationQuantity required : 1 |
||||||
|
6 |
268172 - ATTACHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
7 |
257134 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
9 |
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
10 |
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/6/9/img/89969.jpg)
11 |
REAR BRAKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" 50 VESPA LX 5005>, VESPA-S 2005>, ET2 1998>2004, SFERA 1998>2004/GILERA 50 RUNNER 1998>2004 -665912- More informationQuantity required : 1 |
||||||
|
12 |
581883 - TR. GAZ. DESD. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/9/img/66109.jpg)
13 |
SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271977- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/3/img/66083.jpg)
14 |
THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/8/img/66108.jpg)
15 |
SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271976- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/4/img/66084.jpg)
16 |
CASIND END FOR DISPATCHER "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS 50CC 2 STROKE -269572- More informationQuantity required : 1 |
||||||
|
17 |
581884 - TRANSMISSION GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/5/1/img/79851.jpg)
18 |
OIL PUMP TRANSMISSION CABLE "PIAGGIO GENUINE PART" PIAGGIO 50 VESPA ET2 -562408- More informationQuantity required : 1 |
