Vehicle Exploded View - VESPA VESPA ET2 50 Vespa ET2 Iniezione 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

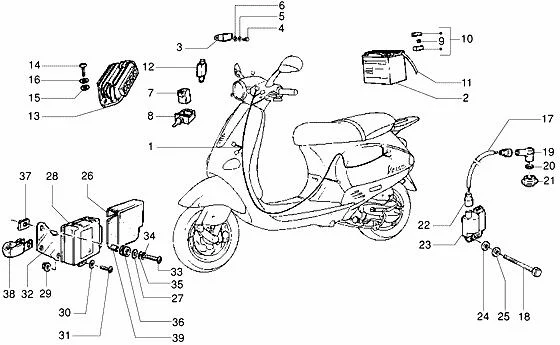

Connexions électriques : T40 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/712/Vespa_ET2_Iniezione_1998-2005_T40.PNG)
2 |
217153 - BATTERIE 12V/5 AH YUASA YB5L-B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/8/img/67258.jpg)
3 |
RELAY FOR ELECTRIC STARTER 12V 30A "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -58246R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
3 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/0/img/65380.jpg)
4 |
015558 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
6 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/3/9/img/118839.jpg)
7 |
FLASHER UNIT "PIAGGIO GENUINE PART" 125 TYPHOON, HEXAGON, SKIPPER, 50 VESPA ET2/GILERA 50-125 RUNNER -1E000357R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/6/img/66246.JPG)
8 |
291017 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
9 |
252945 - FUSIBLE 7,5A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/0/3/img/77603.jpg)
10 |
FUSE HOLDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 1998>2005, 125 VESPA PX -290402- More informationQuantity required : 1 |
||||||
|
11 |
580075 - TUYAU R!NIFLARD More informationQuantity required : 1 |
||||||
|
13 |
2944585 - REGULATEUR More informationQuantity required : 1 |
||||||
|
14 |
015558 - VIS More informationQuantity required : 2 |
||||||
|
15 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
17 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
18 |
031088 - VIS S03108800 More informationQuantity required : 2 |
||||||
|
20 |
114164 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/6/img/65966.jpg)
22 |
231571 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
24 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/3/img/63803.jpg)
25 |
006125 - RONDELLE S00612500 More informationQuantity required : 2 |
||||||
|
26 |
294208 - CACHE More informationQuantity required : 1 |
||||||
|
27 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
29 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 1 |
||||||
|
30 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
|
31 |
015558 - VIS More informationQuantity required : 1 |
||||||
|
33 |
015760 - VIS S01577400 More informationQuantity required : 2 |
||||||
|
34 |
013755 - RONDELLE More informationQuantity required : 2 |
||||||
|
35 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
36 |
SILENBLOC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCCOOTER -258904- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
37 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
|
39 |
270215 - ENTRETOISE More informationQuantity required : 1 |
