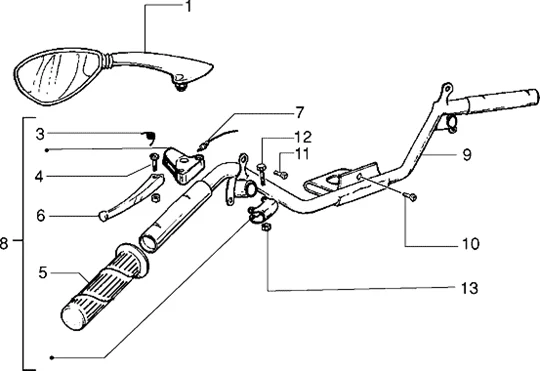

Guidon : T33 PIECES COMPOSANT LE GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/712/Vespa_ET2_Iniezione_1998-2005_T33.PNG)
1 |
MIRROR- LEFT "PIAGGIO GENUINE PART" VESPA 125 ET4 -563866- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
1 |
655554 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/9/4/img/79694.JPG)
2 |
56008R - MAITRE CILINDRE More informationQuantity required : 1 |
||||||
|
3 |
494948 - LEVIER FREIN AV ET4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
3 |
LEFT BRAKE LEVER SPRING "PIAGGIO GENUINE PART" FOR ALL MODELS WITH DRUM BRAKE -267948- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/8/img/66998.JPG)
4 |
560582 - POIGNEE DROITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
4 |
265249 - VIS More informationQuantity required : 1 |
||||||
|
5 |
581883 - TR. GAZ. DESD. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/7/img/66997.jpg)
5 |
560580 - POIGNEE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/0/3/img/80103.jpg)
6 |
LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" 50-125 LIBERTY 1998>2005, 50 ET2, 125 ET4 1998>2004 -564642- More informationQuantity required : 1 |
||||||
|
6 |
CM060918 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/8/img/66078.jpg)
7 |
269145 - TENDEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
7 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953- More informationQuantity required : 1 |
||||||
|
8 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/0/2/img/80102.jpg)
8 |
LEFT BRAKE HANDLE "PIAGGIO GENUINE PART" PIAGGIO 50-125 LIBERTY 1998>2005, 50 VESPA ET2, 125 VESPA ET4 1998>2005 -564641- More informationQuantity required : 1 |
||||||
|
9 |
5817165 - GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/2/img/67022.JPG)
10 |
562923 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING OR FLASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008457- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
11 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
11 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/6/img/65606.jpg)
12 |
030039 - VIS More informationQuantity required : 1 |
||||||
|
13 |
440785 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
13 |
015330 - ECROU More informationQuantity required : 1 |
||||||
|
14 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" VESPA 125 ET4 -563865- More informationQuantity required : 1 |
||||||
|
15 |
128009 - CAPSULE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
16 |
178790 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.JPG)
17 |
123394 - VIS More informationQuantity required : 1 |
