Vehicle Exploded View - MOTO-GUZZI V9 850 Roamer 850 E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

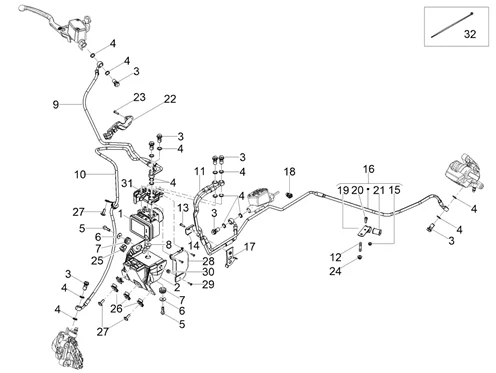

Système frein abs : 06.05 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/980/V9_Roamer_850_E5_ABS_2021_(EMEA)_06.05.png)
2 |
2B006724 - ABS CONTROL UNIT SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/5/img/127555.JPG)
3 |
1C002059R - VIS More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
4 |
AP8113004 - RONDELLE More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
5 |
2B004560 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
6 |
AP8150015 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
7 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
8 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
||||||
|
9 |
2B007159 - PUMP BRAKE HOSE ABS CONTROL More informationQuantity required : 1 |
||||||
|
10 |
2B006720 - FRONT CALIPER BRAKE HOSE-ABS CONTROL More informationQuantity required : 1 |
||||||
|
11 |
2B006722 - REAR PUMP BRAKE HOSE-ABS CONTROL More informationQuantity required : 1 |
||||||
|
12 |
GU96451316 - VIS SANS TETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/8/img/70918.jpg)
13 |
959559 - VIS More informationQuantity required : 1 |
||||||
|
14 |
2B001614 - PIASTRINA FISSAGGIO TUBI FRENO ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
15 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO/GUZZI -AP8150451- More informationQuantity required : 1 |
||||||
|
16 |
2B007891 - REAR BRAKE CALIPER TUBE ABS CONTROL UNI More informationQuantity required : 1 |
||||||
|
17 |
2B001564 - PIASTRA DI SUPPORTO CON P.I. More informationQuantity required : 1 |
||||||
|
18 |
AP8121882 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
19 |
GU03658330 - COLLIER More informationQuantity required : 1 |
||||||
|
20 |
895709 - VIS More informationQuantity required : 1 |
||||||
|
21 |
GU03658201 - BAGUE More informationQuantity required : 1 |
||||||
|
22 |
2B007157 - BRAKE PIPE DUCT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
23 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
24 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.JPG)
25 |
AP8201727 - GUIDE-CABLE NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
26 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.JPG)
27 |
CM179301 - VIS More informationQuantity required : 3 |
||||||
|
28 |
2B007092 - CONNECTOR COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
29 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/1/img/71191.JPG)
30 |
AP8102671 - RIVET EN PLASTIQUE More informationQuantity required : 1 |
||||||
|
31 |
2B006725 - ABS PIPING GUIDE PLATE More informationQuantity required : 1 |
||||||
|
32 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 1 |
