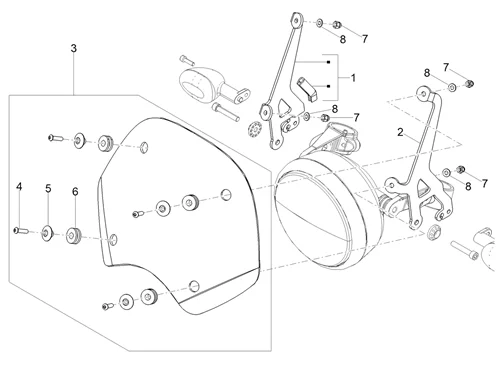

Carrosserie : 02.05 COUPOLE / PARE BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/980/V9_Roamer_850_E5_ABS_2021_(EMEA)_02.05.png)
1 |
2B004760 - PATTE More informationQuantity required : 1 |
||||||
|
2 |
2B004761 - PATTE More informationQuantity required : 1 |
||||||
|
3 |
2B004751 - PARE-BRISE KIT More informationQuantity required : 1 |
||||||
|
4 |
2B004767 - VIS More informationQuantity required : 4 |
||||||
|
5 |
GU32578410 - RUBBER BUFFER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/1/img/73481.JPG)
6 |
GU32577910 - RUBBER BUFFER More informationQuantity required : 4 |
||||||
|
7 |
GU92787006 - ECROU More informationQuantity required : 4 |
||||||
|
8 |
GU95005306 - RONDELLE 6,4X13X1,5 More informationQuantity required : 4 |
