Vehicle Exploded View - MOTO-GUZZI V9 850 Roamer 850 E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

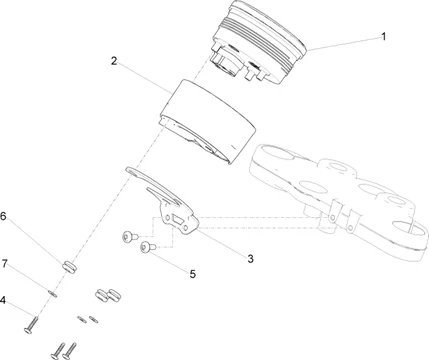

Feux - instruments : 08.02 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/980/V9_Roamer_850_E5_ABS_2021_(EMEA)_08.02.png)
1 |
2D000652 - MPH DASHBOARD More informationQuantity required : 1 |
||||||
|
1 |
2D000651 - KM/H DASHBOARD More informationQuantity required : 1 |
||||||
|
2 |
2B001223 - COUVERCLE More informationQuantity required : 1 |
||||||
|
3 |
2B001154 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
4 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 3 |
||||||
|
5 |
GU98210610 - VIS More informationQuantity required : 2 |
||||||
|
6 |
2B003367 - PASSE-CABLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
7 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 3 |
